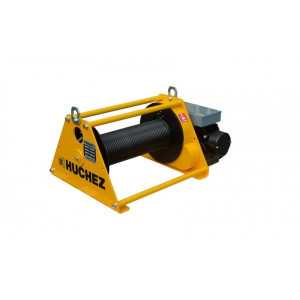

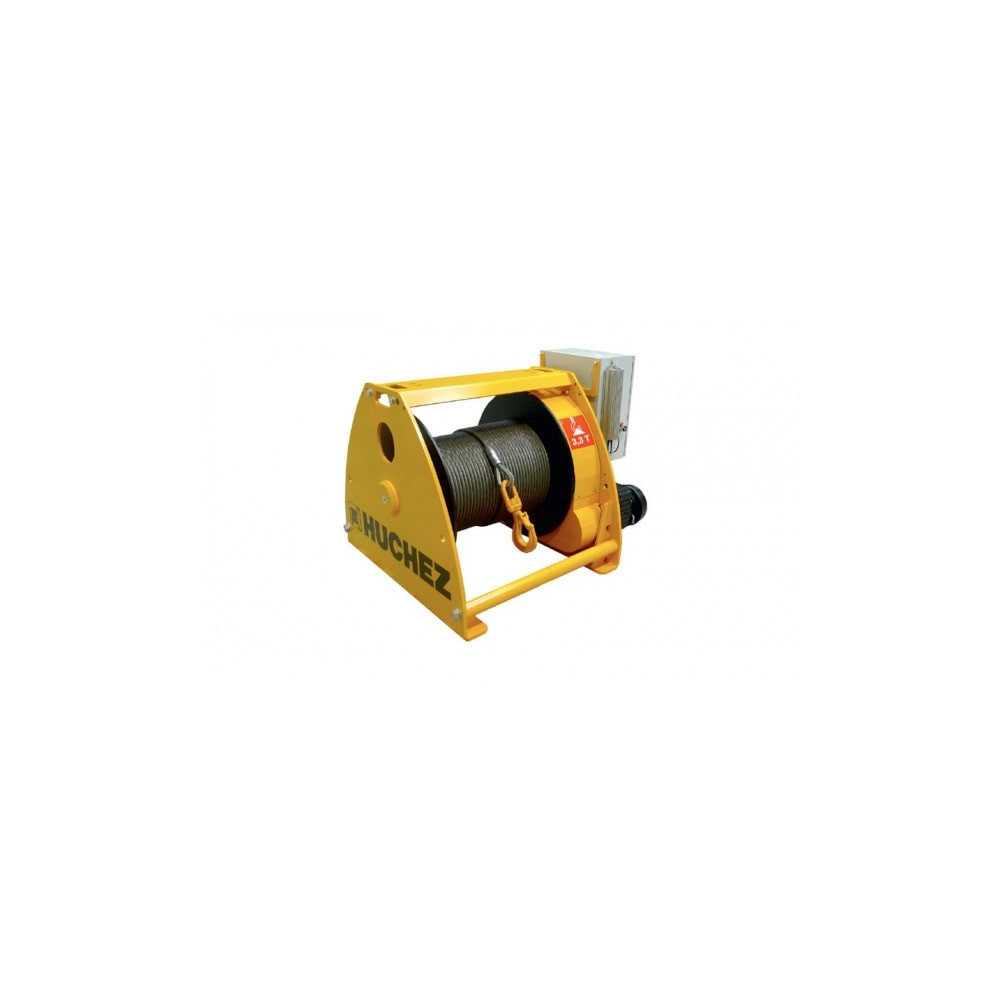

LARGE CAPACITY ELECTRIC WINCH FROM 600 TO 10000KG
TE600S10BT
Product description
^- Moderate or heavy use depending on model
Structure in welded steel, shot-blasted and painted.
Single-phase power supply 230 V - 50 Hz or three-phase 230/400V-50 Hz according to model

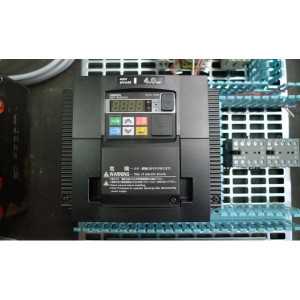

Very low voltage control ensuring the protection of users against electrical risks.
Product details
^| Référence | Force couche supérieur kg | Force 1ère couche kg | Nb de couches | Capacité tambour max. m | Capacité tambour 1ère couche m | Câble ø mm | Vitesse m/min | FEM | Moteur kW | Alimentation | Poids | ||
| TE 600 S | 10BT | 600 | 755 | 5 | 325 | 56 | 7 | 10 | 2m | 2,2 | 3 Ph-230V/400 | 215 | |
| TE 600 S | 16BT | 600 | 755 | 5 | 325 | 56 | 7 | 16 | 2m | 3 | 3 Ph-230V/400 | 220 | |
| TE 600 S | 22BT | 600 | 755 | 5 | 325 | 56 | 7 | 22 | 2m | 4 | 3 Ph-230V/400 | 220 | |
| TE 1000 S | 6BT | 1000 | 1300 | 5 | 280 | 48 | 8 | 6 | 2m | 2,2 | 3 Ph-230V/400 | 215 | |
| TE 1000 S | 13BT | 1000 | 1300 | 5 | 280 | 48 | 8 | 13 | 2m | 4 | 3 Ph-230V/400 | 220 | |
| TE 1600 S | 5BT | 1600 | 2110 | 4 | 160 | 33 | 11,5 | 5 | 2m | 2,2 | 3 Ph-230V/400 | 215 | |
| TE 1600 S | 11BT | 1600 | 2110 | 4 | 160 | 33 | 11,5 | 11 | 2m | 5,5 | 3 Ph-230V/400 | 220 |

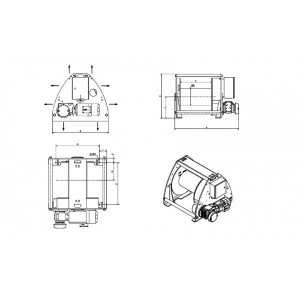

| Modèles | A (mm) | B (mm) | C (mm) | Ø D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) |
| 600 à 1600 TE | 1088 | 720 | 545 | 203 | 600 | 665 | 570 | 18 | 75 |
| 2000 à 5000 TE | Nous consulter | 1000 | 973 | 324 | 600 | 725 | 750 | 22 | 125 |
| 7500 TE | 1471 | 1200 | 1143 | 394 | 800 | 922 | 1000 | 28 | 100 |
| 10000 TE | 1659 | 1240 | 1295 | 394 | 800 | 1216 | 1000 | 27 | 120 |
Advices
- Moderate or heavy use depending on model
Structure in welded steel, shot-blasted and painted.
Single-phase power supply 230 V - 50 Hz or three-phase 230/400V-50 Hz according to model
Very low voltage control ensuring the protection of users against electrical risks.
