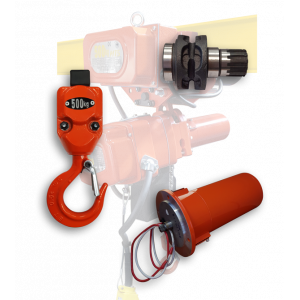

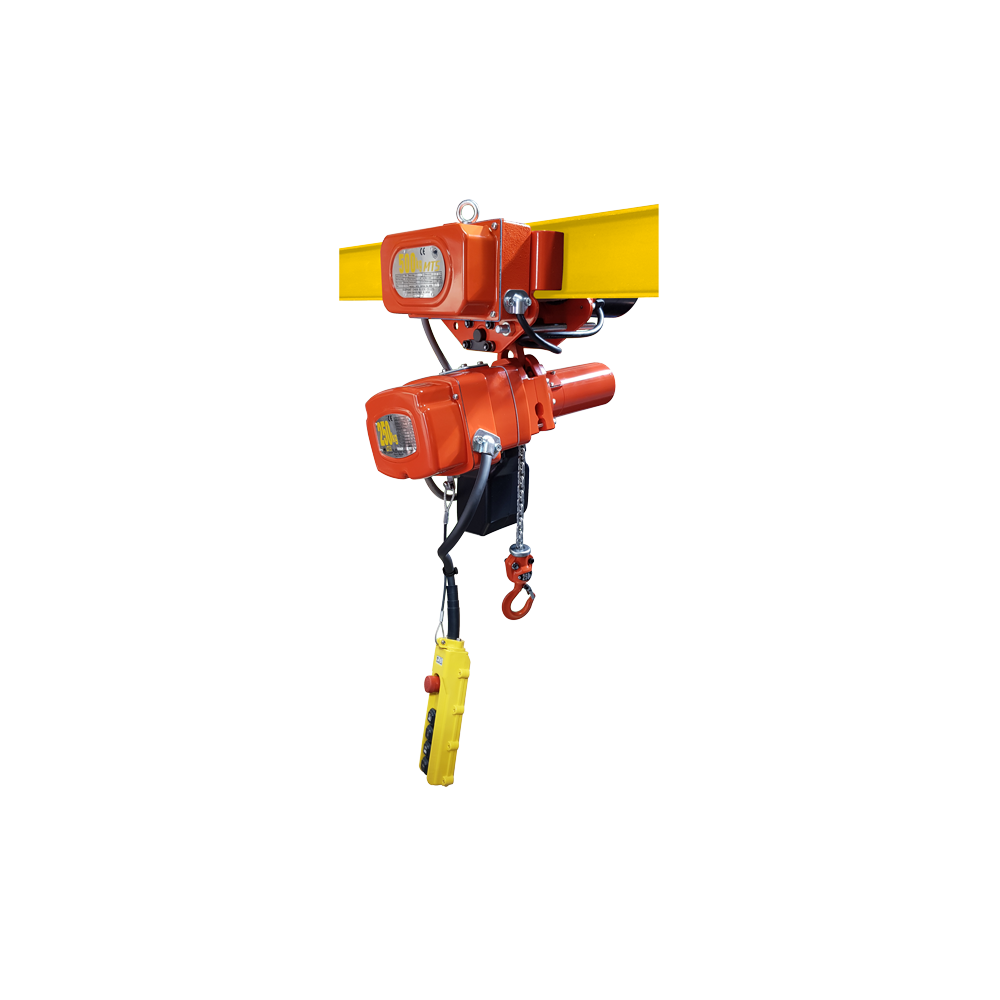

SINGLE-PHASE ELECTRIC HOIST WITH FREE CART 2 SPEEDS
EABP-015-3M
Product description
^The EABP 2-speed single-phase electric trolley hoist provides efficient load lifting with a light weight due to its cast aluminium design and housings and a small footprint due to its modern design which ensures low headroom.

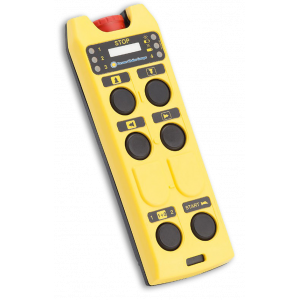

The 2 speed electric trolley hoist has a quality load chain made of grade 80 steel. The electric hoist is equipped with a torque limiter, an emergency stop and a 24V low voltage control in 380V tri only. The minimum bending radius is 900mm for 150-250kg electric hoists and 1100mm for 500kg electric hoists.
The braking of the hoist is reliable and powerful thanks to the use of asbestos-free material. The EABP electric hoist is finished with electrostatic paint.
The device is delivered with a CE certificate of conformity.
Product details
^| Référence | Description | Longueur de la chaîne en mètres | Capacité kg | Nombre de brins | Hauteur perdue mm | Vitesse (s) de levage m / min | Vitesse de direction m / min | Réglage largeur de fer roulement mm | Puissance moteur palan kW | Poids kg |
| EACP-015 | 1 vitesse, triphasé 380V | 3 | 150 | 1 | 355 | 9 | 10 ou 20 | 50– 127 | 0.55 | 37 |
| EACP-025 | 3 | 250 | 1 | 355 | 9 | 10 ou 20 | 50 – 127 | 0.55 | 37 | |
| EACP-050 | 3 | 500 | 2 | 395 | 4.5 | 10 ou 20 | 50 – 127 | 0.55 | 56 | |
| EAHP-015 | 1 vitesse, monophasé 220V | 3 | 160 | 1 | 355 | 15 | 10 | 50 – 127 | 0.6 | 36 |
| EAHP-025 | 3 | 250 | 1 | 355 | 10 | 10 | 50 – 127 | 0.6 | 36 | |
| EAHP-050 | 3 | 500 | 2 | 395 | 5 | 10 | 50 – 127 | 0.6 | 54 | |
| EABP-015 | 2 vitesses, monophasé 220V | 3 | 160 | 1 | 355 | 15 / 5 | 10 | 50 – 127 | 0.6 | 36 |
| EABP-025 | 3 | 250 | 1 | 355 | 10 / 4 | 10 | 50 – 127 | 0.6 | 36 | |
| EABP-050 | 2 | 500 | 2 | 395 | 5 / 2 | 10 | 50 – 127 | 0.6 | 54 | |
| EAVP-015 | Vitesse variable, monophasé 220V | 3 | 160 | 1 | 355 | 1 / 15 | 10 | 50 – 127 | 0.6 | 36 |
| EAVP-025 | 3 | 250 | 1 | 355 | 1 / 10 | 10 | 50 – 127 | 0.6 | 36 | |
| EAVP-050 | 3 | 500 | 2 | 395 | 0.5 / 5 | 10 | 50 – 127 | 0.6 | 54 |
| Dimensions | Capacité kg | A mm | B mm | C mm | D (triphasé) mm | D (monophasé) mm | E mm | F mm | G mm | I mm | K mm | L mm | M mm | N mm | P mm | Q mm |
| Tous modèles | 150 | 102 | 104 | 230 | 203 | 233 | 58/96 | 102/140 | 16/93 | 50/127 | 32 | 20 | 67.5 | 171 | 12 | 16 |
| Tous modèles | 250 | 102 | 104 | 230 | 203 | 233 | 58/96 | 102/140 | 16/93 | 50/127 | 32 | 20 | 67.5 | 171 | 12 | 16 |
| Tous modèles | 500 | 85 | 121 | 230 | 203 | 233 | 58/96 | 102/140 | 16/93 | 50/127 | 43 | 25 | 86 | 171 | 14 | 19 |
