Product description

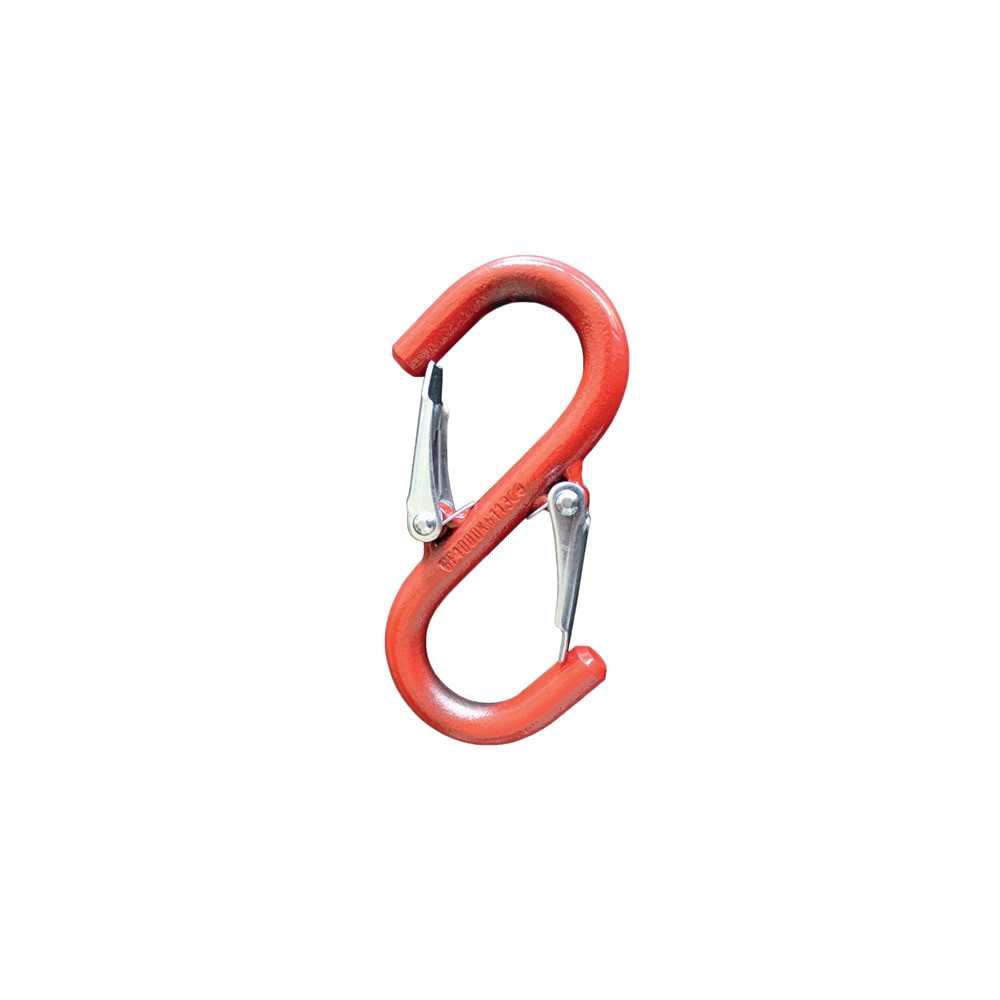

^The S-hook with latch is forged from hardened steel class 8. This sling accessory has a safety factor of 4.
The safety latch prevents the load or the slings from being unintentionally released. The S-hooks have two latch pins and can be used as an alternative to shackles. Levage Manutention offers hooks in several models with a WLL of 0.05 to 5 tonnes. The hook with latch is ideal for the movement of parts in paint or shot blasting booths or simply for the storage of various lifting accessories such as chain slings, cable slings and various parts.
This lifting hook is individually packaged and comes with a CE declaration. It also includes a legible marking for traceability of the CMU.
Product details

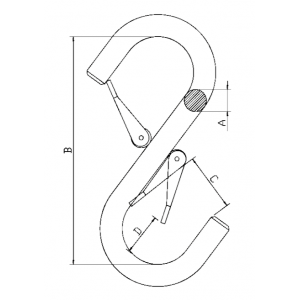

^| Reference | WLL | A | B | C | D | E | Weight |
| [kg] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| 1259A | 50 | 6 | 80 | 20 | 15 | 28 | 0.05 |
| 1259B | 100 | 8 | 80 | 20 | 15 | 28 | 0.08 |
| 1259C | 200 | 10 | 80 | 17 | 20 | 28 | 0.12 |
| 1259D | 300 | 14 | 100 | 23 | 20 | 35 | 0.3 |
| 1259E | 500 | 16 | 130 | 32 | 22 | 45 | 0.52 |
| 1259F | 750 | 18 | 160 | 42 | 27 | 56 | 0.8 |
| 1259G | 1000 | 20 | 180 | 48 | 37 | 63 | 1.1 |
| 1259H | 1250 | 22 | 200 | 51 | 38 | 70 | 1.25 |
| 1259J | 1500 | 26 | 220 | 55 | 50 | 77 | 2 |
| 1259K | 2000 | 32 | 260 | 70 | 56 | 91 | 3.65 |
| 1259L | 3000 | 36 | 320 | 84 | 65 | 112 | 5.7 |
| 1259M | 4000 | 40 | 360 | 103 | 76 | 126 | 8.5 |
| 1259N | 5000 | 45 | 400 | 110 | 84 | 140 | 12 |
Advices
The S-hook with latch is forged from hardened steel class 8. This sling accessory has a safety factor of 4.
The safety latch prevents the load or the slings from being unintentionally released. The S-hooks have two latch pins and can be used as an alternative to shackles. Levage Manutention offers hooks in several models with a WLL of 0.05 to 5 tonnes. The hook with latch is ideal for the movement of parts in paint or shot blasting booths or simply for the storage of various lifting accessories such as chain slings, cable slings and various parts.
This lifting hook is individually packaged and comes with a CE declaration. It also includes a legible marking for traceability of the CMU.
