Product description

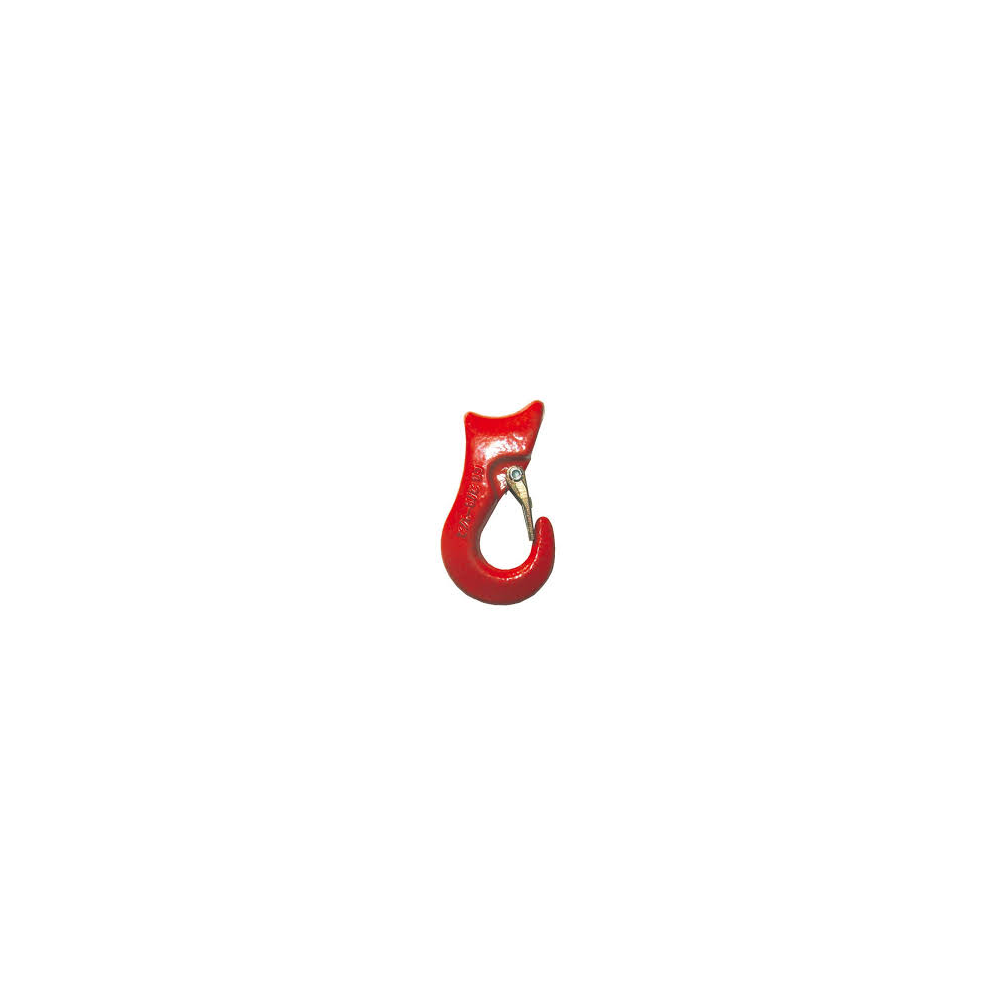

^The Grade 80 single wire rope sliding hook is designed to provide self-clamping of the load. The hook is made of alloy steel, grade 80, hardened and tempered.
The sliding hook is available for CMU's from 1.25T to 5T.
A CE certificate of conformity is supplied with the grade 80 sliding hook.
Product details

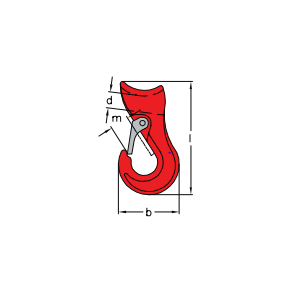

^| Référence | CMU | Diamètre câble | b | d | l | m | Poids unitaire |
| [t] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| 133531010 | 1.25 | 9 – 13 | 70 | 17 | 128 | 19 | 0.7 |
| 133531016 | 2 | 14 – 16 | 80 | 22 | 147 | 22 | 1 |
| 133531019 | 3 | 17 – 19 | 103 | 27 | 174 | 30 | 1.9 |
| 133531022 | 5 | 20 – 26 | 133 | 33 | 210 | 40 | 3.6 |
Advices
The Grade 80 single wire rope sliding hook is designed to provide self-clamping of the load. The hook is made of alloy steel, grade 80, hardened and tempered.
The sliding hook is available for CMU's from 1.25T to 5T.
A CE certificate of conformity is supplied with the grade 80 sliding hook.
