Product description

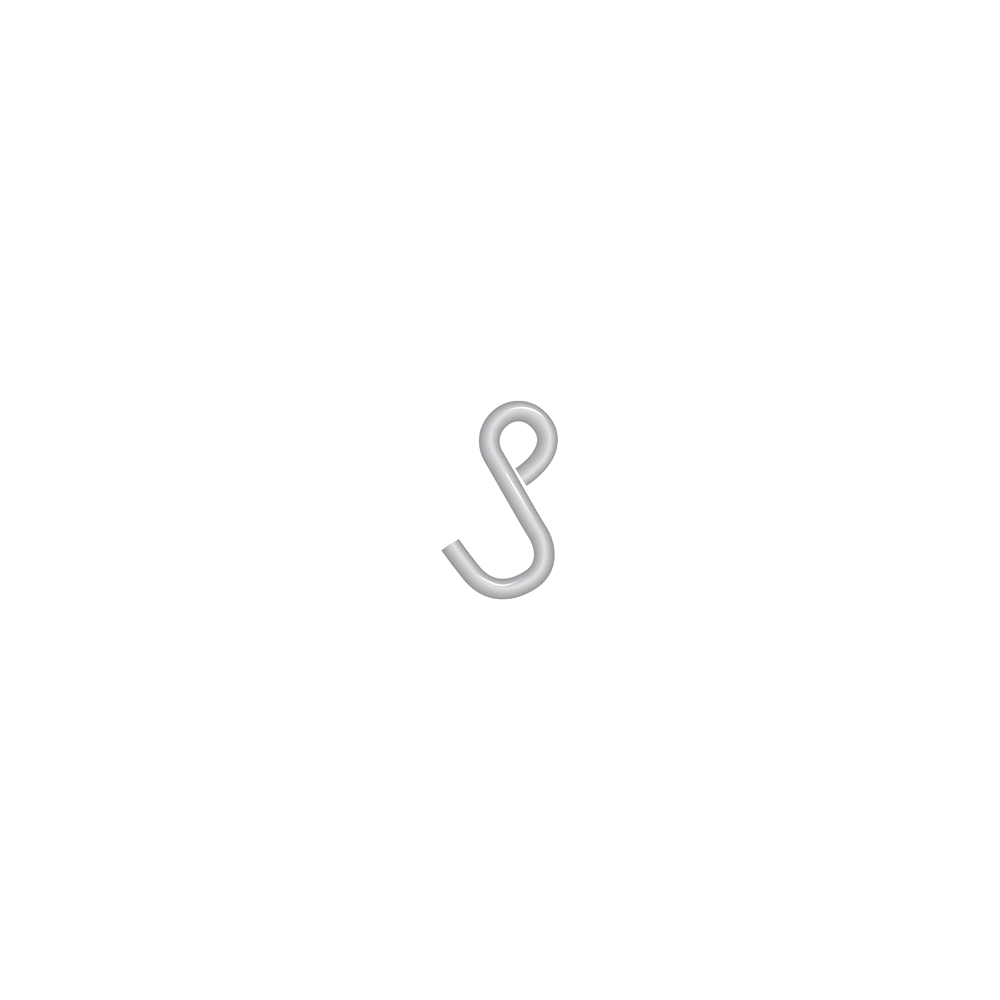

^The SO heavy duty eye hook is manufactured from grade 80 steel with a red or white paint finish.
It should only be used for lashing, its safety factor is 4 times the lashing capacity. The S-hook is available for diameters from 200 to 6000mm.
Product details

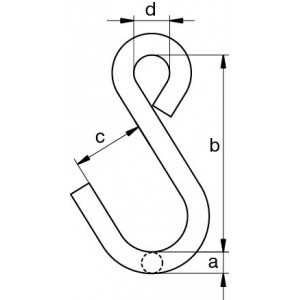

^| Référence | Capacité d’arrimage | Dia. | Longueur | Largeur | Largeur intérieure | Poids unitaire |
| a | b | c | d | |||
| [t] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| SO10 | 0.2 | 10 | 80 | 30 | 16 | 0.11 |
| SO13 | 0.3 | 13 | 100 | 40 | 21 | 0.25 |
| SO16 | 0.5 | 16 | 130 | 50 | 25 | 0.48 |
| SO18 | 0.75 | 18 | 160 | 59 | 34 | 0.76 |
| SO20 | 1 | 20 | 180 | 65 | 42 | 1.07 |
| SO22 | 1.2 | 22 | 195 | 69 | 37 | 1.4 |
| SO24 | 1.5 | 24 | 220 | 79 | 40 | 1.79 |
| SO32 | 2 | 32 | 260 | 90 | 46 | 3.8 |
| SO36 | 3 | 36 | 320 | 99 | 52 | 5.35 |
| SO40 | 4 | 40 | 360 | 115 | 59 | 7.85 |
| SO45 | 5 | 45 | 390 | 126 | 68 | 10.95 |
| SO51 | 6 | 51 | 450 | 150 | 77 | 15.2 |
Advices
The SO heavy duty eye hook is manufactured from grade 80 steel with a red or white paint finish.
It should only be used for lashing, its safety factor is 4 times the lashing capacity. The S-hook is available for diameters from 200 to 6000mm.
