Product description

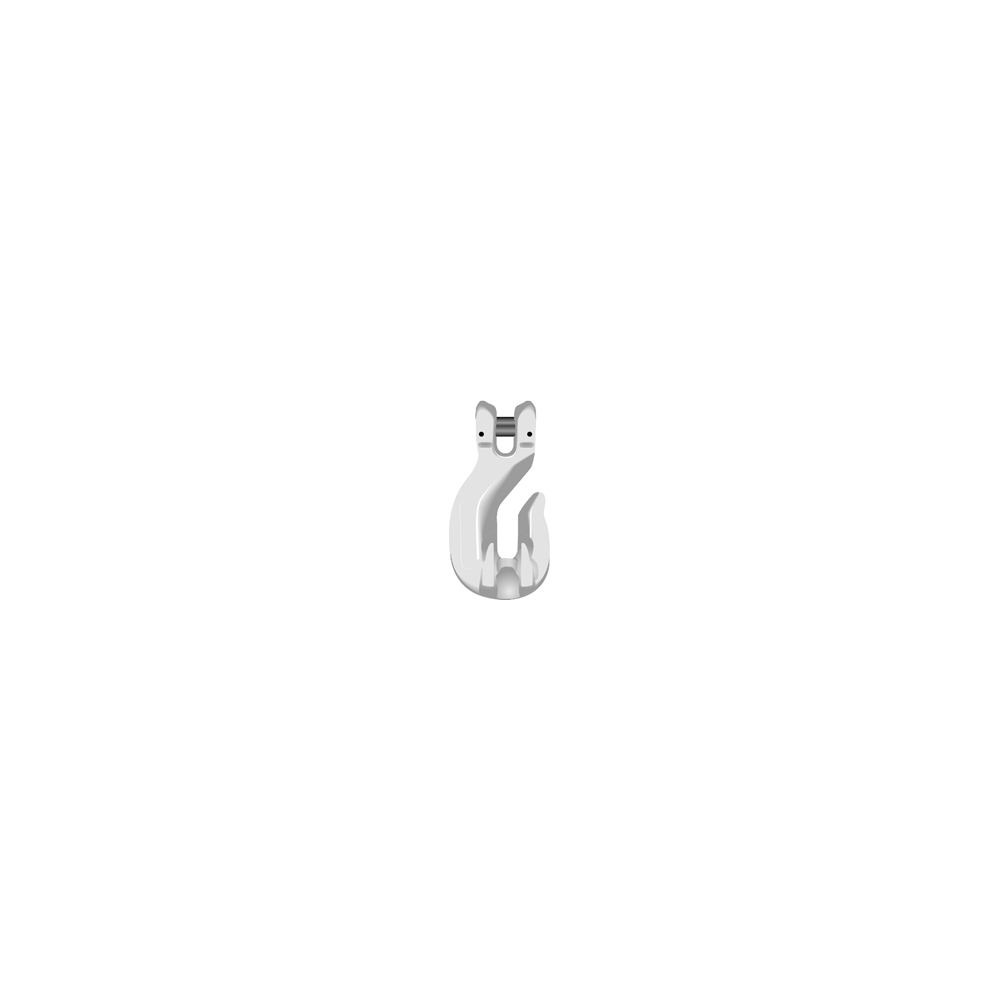

^The CRC grade 80 clevis hook is manufactured from alloy steel, hardened and tempered with a yellow, red or white paint finish (on request). The safety coefficient of the hook is 4 times the CMU.
The clevis hook is available in diameters from 6 to 16 mm.
Standard: EN 1677-1
Product details

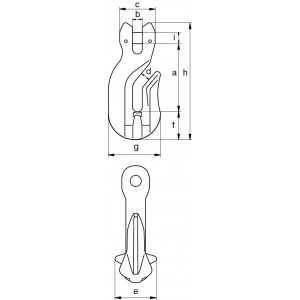

^| Référence | CMU | Pour chaînes dia. | a | b | c | d | e | f | g | h | i | Poids unitaire |
| [t] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| CRC6 | 1.12 | 6 | 52 | 7 | 28 | 7 | 24 | 19 | 42 | 86 | 8 | 0.28 |
| CRC7/8 | 2 | 7/8 | 64 | 9 | 32 | 10 | 33 | 23 | 53 | 104 | 9 | 0.45 |
| CRC10 | 3.2 | 10 | 75 | 12 | 42 | 12 | 40 | 29 | 66 | 127 | 13 | 0.88 |
| CRC13 | 5.4 | 13 | 103 | 15 | 54 | 15 | 56 | 40 | 88 | 173 | 16 | 2.17 |
| CRC16 | 8.2 | 16 | 127 | 19 | 68 | 18 | 65 | 43 | 96 | 208 | 20 | 2.81 |
Advices
The CRC grade 80 clevis hook is manufactured from alloy steel, hardened and tempered with a yellow, red or white paint finish (on request). The safety coefficient of the hook is 4 times the CMU.
The clevis hook is available in diameters from 6 to 16 mm.
Standard: EN 1677-1
