Product description

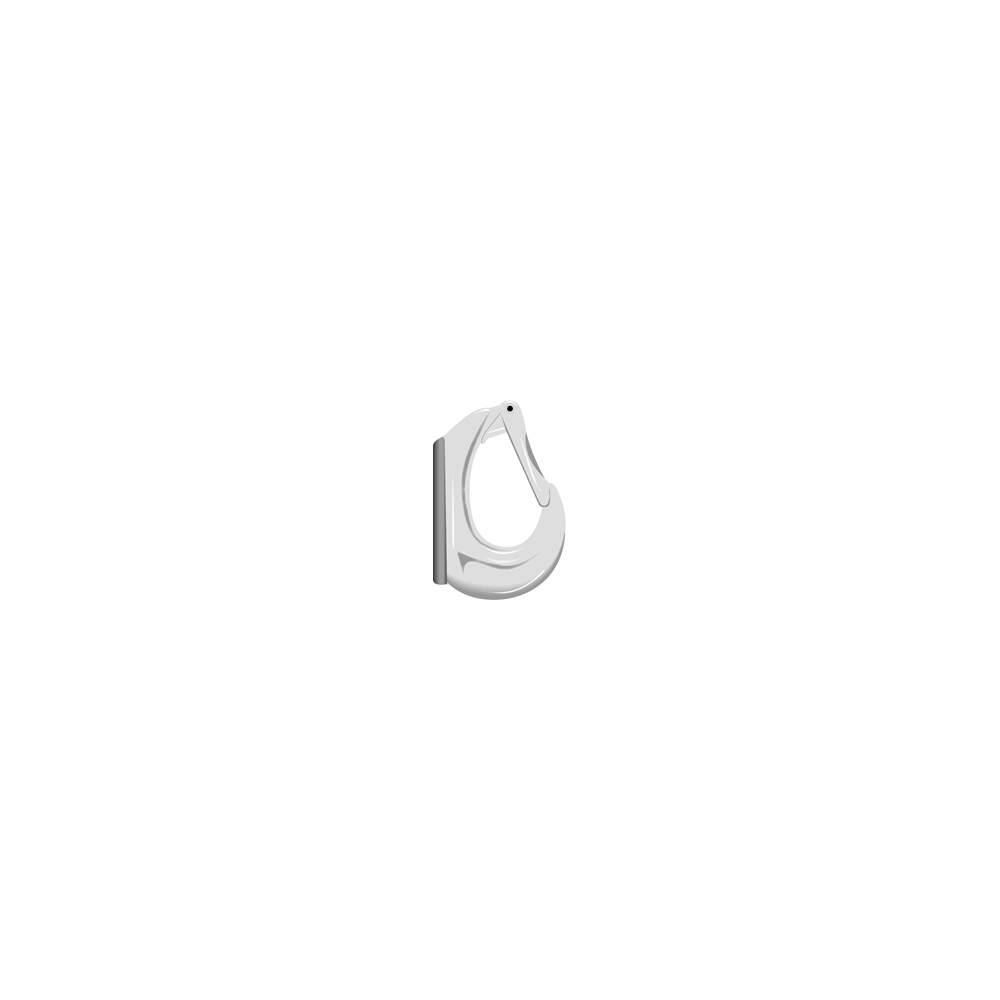

^The GH grade 80 bucket hook is made of alloy steel, hardened and tempered with a yellow or white paint finish (on request). The safety coefficient of the hook is equal to 4 times the CMU.
The bucket hook is available for CMU from 1T to 15T.
Please note that the welding must be done according to DIN 5817 resp. 15429, by a qualified welder according to EN 287-1.
Product details

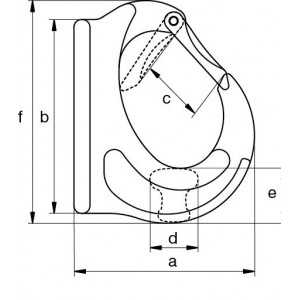

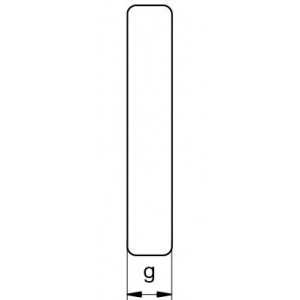

^| Référence | CMU | a | b | c | d | e | f | g | Poids unitaire |
| [t] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| GH1 | 1 | 72 | 78 | 25 | 19 | 28 | 108 | 26 | 0.52 |
| GH2 | 2 | 92 | 85 | 33 | 20 | 28 | 114 | 34 | 0.7 |
| GH3 | 3 | 105 | 104 | 33 | 26 | 32 | 129 | 34 | 1.15 |
| GH4 | 4 | 121 | 130 | 38 | 27 | 37 | 148 | 38 | 1.66 |
| GH5 | 5 | 138 | 150 | 43 | 28 | 46 | 167 | 44 | 2.36 |
| GH8 | 8 | 145 | 148 | 43 | 42 | 53 | 173 | 51 | 3.32 |
| GH10 | 10 | 178 | 197 | 60 | 47 | 61 | 225 | 67 | 6.44 |
| GH15 | 15 | 185 | 226 | 65 | 62 | 70 | 251 | 80 | 9.7 |
Advices
The GH grade 80 bucket hook is made of alloy steel, hardened and tempered with a yellow or white paint finish (on request). The safety coefficient of the hook is equal to 4 times the CMU.
The bucket hook is available for CMU from 1T to 15T.
Please note that the welding must be done according to DIN 5817 resp. 15429, by a qualified welder according to EN 287-1.
