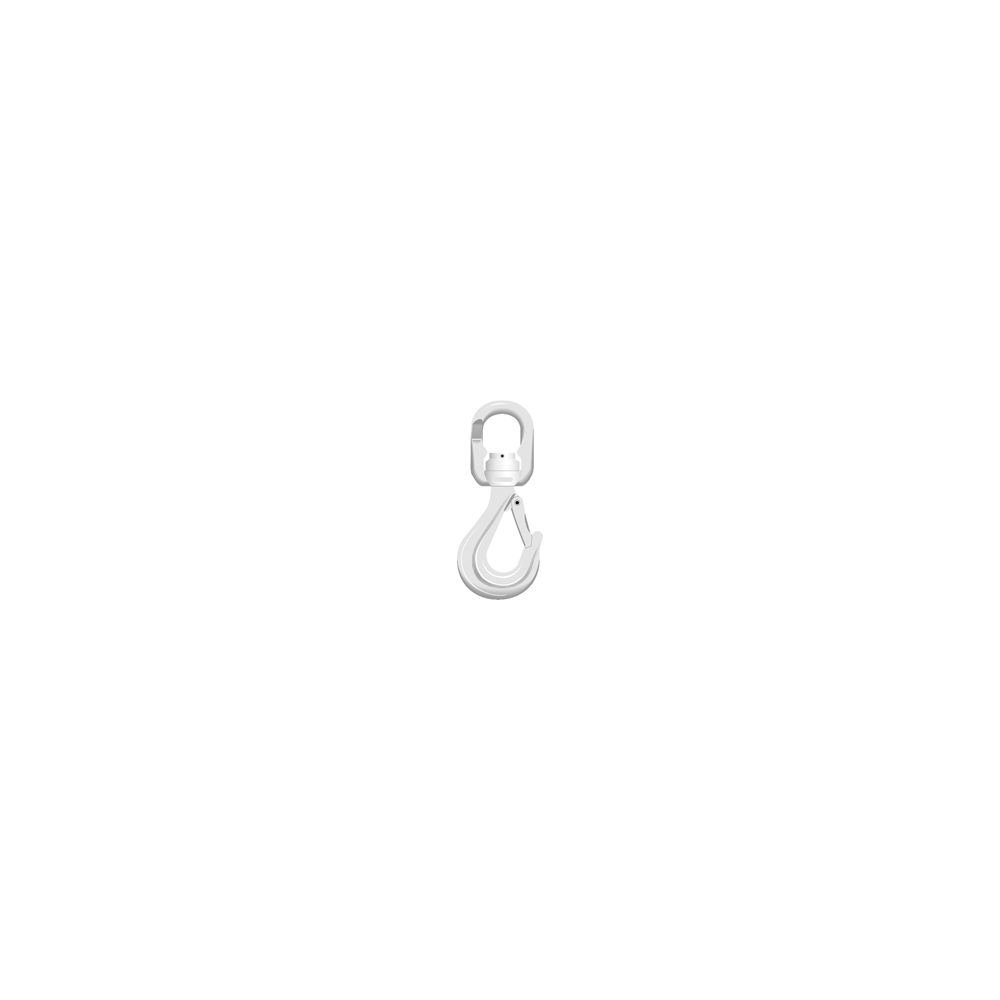

^The CSE grade 80 single swivel hook is manufactured from alloy steel, hardened and tempered with a yellow, red or white paint finish (please specify your preferred colour). The safety coefficient of the hook is 4 times the CMU. The single swivel hook is available for diameters from 5 to 20mm.
The CSE single swivel hook must be mounted on a roller bearing.
Standard: EN 1677-2
Product details

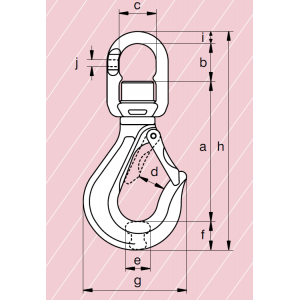

^| Référence | CMU | Pour chaînes dia. | a | b | c | d | e | f | g | h | i | j | Poids unitaire |
| [t] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| CSE5/6 | 1.12 | 5/6 | 100 | 33 | 32 | 26 | 15 | 20 | 72 | 164 | 12 | 6 | 0.55 |
| CSE7/8 | 2 | 7/8 | 126 | 39 | 37 | 30 | 20 | 24 | 87 | 200 | 14 | 8 | 1 |
| CSE10 | 3.2 | 10 | 159 | 47 | 48 | 33 | 24 | 29 | 106 | 250 | 16 | 11 | 1.9 |
| CSE13 | 5.4 | 13 | 189 | 59 | 58 | 37 | 32 | 39 | 133 | 307 | 21 | 14 | 3.39 |
| CSE16 | 8.2 | 16 | 216 | 68 | 73 | 44 | 40 | 44 | 165 | 352 | 25 | 17 | 6.25 |
| CSE18/20 | 12.8 | 18/20 | 263 | 87 | 82 | 61 | 49 | 62 | 208 | 437 | 25 | 22 | 10.5 |
