Product description

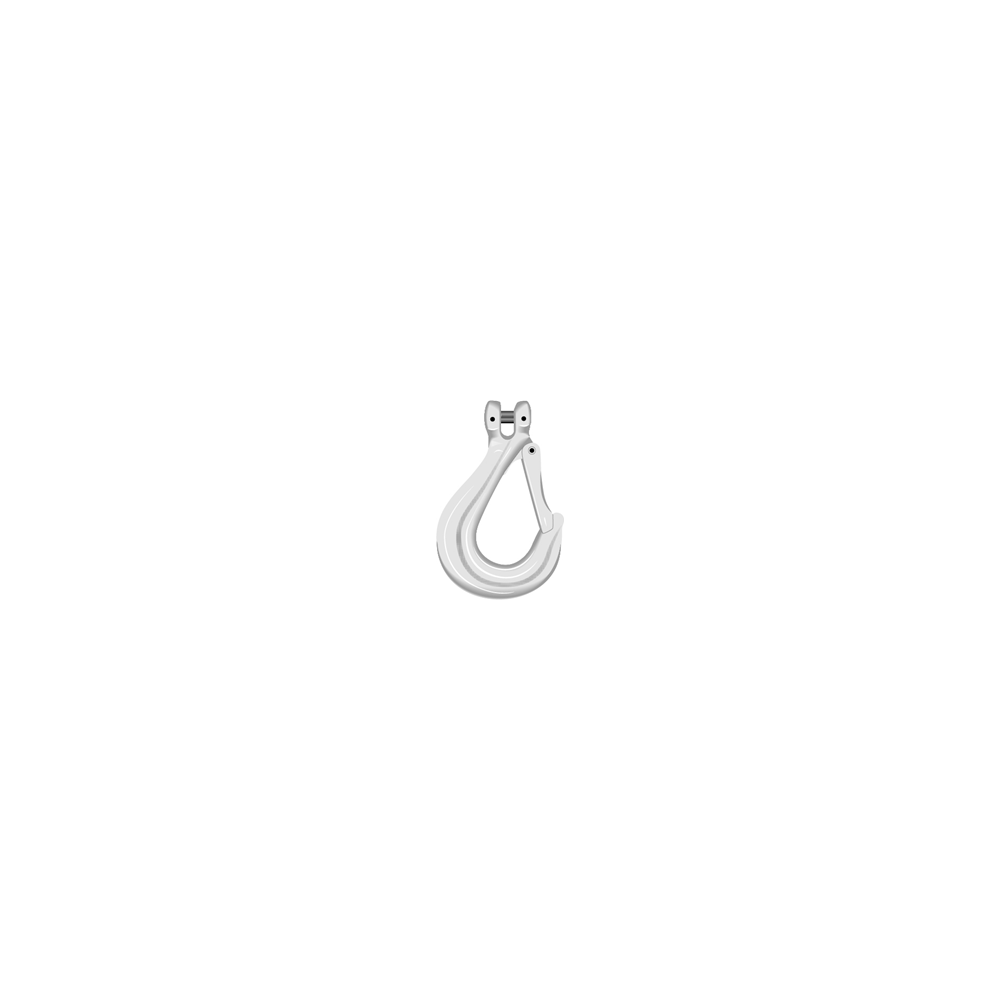

^The CSC grade 80 single hook is manufactured from alloy steel, hardened and tempered and finished in yellow, red or white paint (please indicate your preferred colour). The safety coefficient of the single hook is 4 times the CMU.
The CSC grade 80 single hook is available for diameters from 5 to 22mm.
Standard: EN 1677-2
Product details

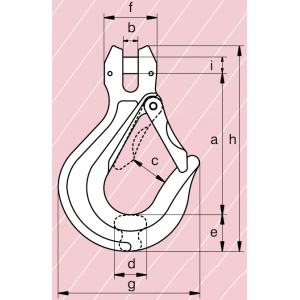

^| Référence | CMU | Pour chaînes dia. | a | b | c | d | e | f | g | h | i | Poids unitaire |
| [t] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| CSC5 | 0.8 | 5 | 76 | 7 | 26 | 15 | 20 | 28 | 72 | 108 | 6 | 0.29 |
| CSC6 | 1.12 | 6 | 75 | 7 | 26 | 15 | 20 | 28 | 72 | 108 | 8 | 0.29 |
| CSC7/8 | 2 | 7/8 | 95 | 9 | 30 | 20 | 24 | 32 | 87 | 136 | 9 | 0.58 |
| CSC10 | 3.2 | 10 | 113 | 12 | 33 | 24 | 29 | 42 | 106 | 164 | 13 | 1.1 |
| CSC13 | 5.4 | 13 | 138 | 15 | 37 | 32 | 39 | 54 | 133 | 208 | 16 | 2.12 |
| CSC16 | 8.2 | 16 | 161 | 19 | 44 | 40 | 44 | 68 | 165 | 240 | 20 | 3.67 |
| CSC18/20 | 12.8 | 18/20 | 233 | 23 | 61 | 49 | 62 | 82 | 208 | 305 | 24 | 7.32 |
| CSC22 | 15.5 | 22 | 236 | 25 | 75 | 54 | 65 | 97 | 242 | 350 | 28 | 10.63 |
