Product description

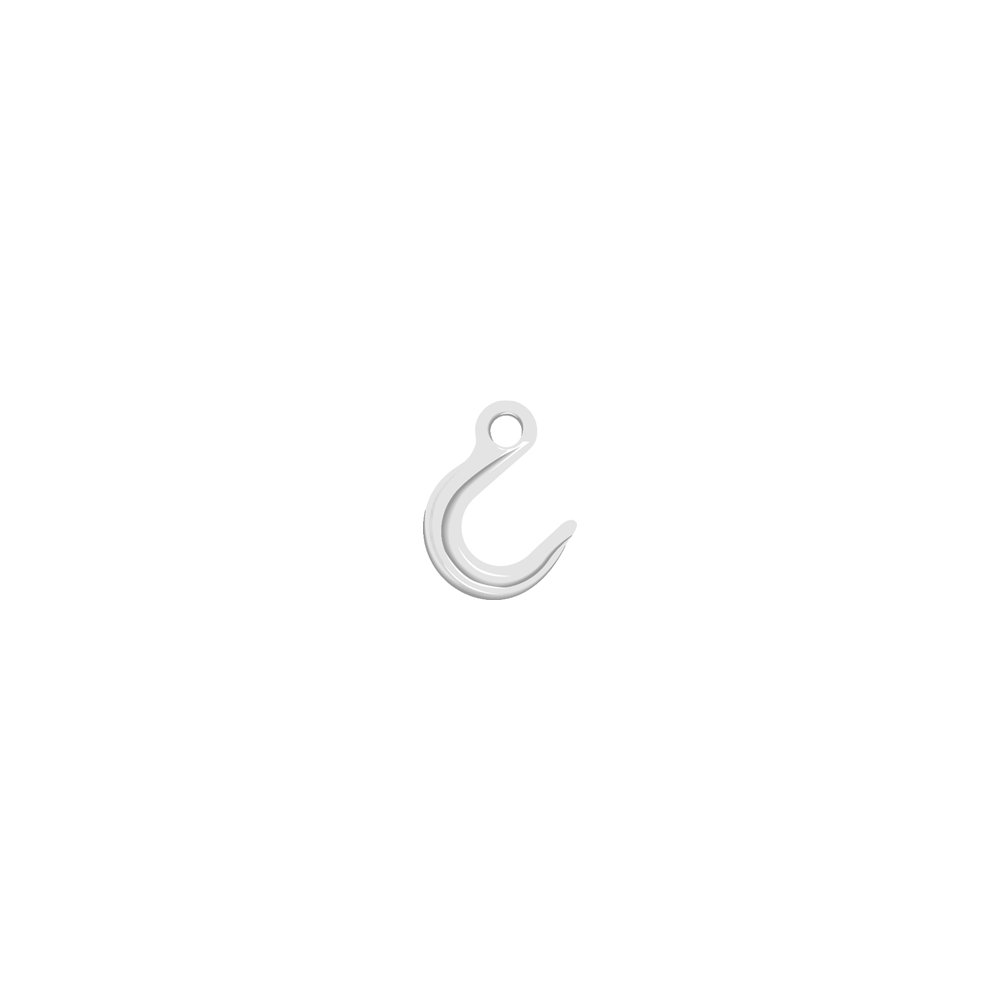

^The CFO grade 80 eye hook is made of alloy steel, quenched and tempered with a yellow, red or white paint finish (on request). The safety coefficient of the hook is 4 times the CMU. It is available in diameters from 6 to 32mm.
The cast eye hook is functional, robust and easy to use. The CFO hook is the link between the load to be moved or lifted and the lifting equipment.
From 8.2T, the hook is flat-free.
Product details

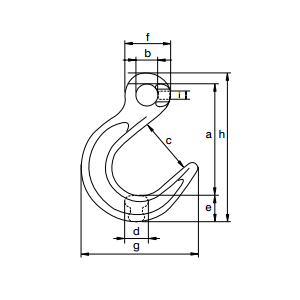

^| Référence | CMU | Pour chaînes dia. | a | b | c | d | e | f | g | h | i | Poids unitaire |
| [t] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| CFO6 | 1.12 | 6 | 93 | 18 | 47 | 17 | 22 | 38 | 97 | 125 | 7 | 0.33 |
| CFO7/8 | 2 | 7/8 | 124 | 24 | 63 | 22 | 30 | 51 | 129 | 166 | 9 | 0.78 |
| CFO10 | 3.2 | 10 | 157 | 33 | 79 | 28 | 36 | 66 | 160 | 208 | 11 | 1.5 |
| CFO13 | 5.4 | 13 | 190 | 44 | 93 | 36 | 46 | 85 | 198 | 256 | 14 | 3 |
| CFO16 | 8.2 | 16 | 205 | 35 | 95 | 45 | 52 | 88 | 204 | 284 | 24 | 4.2 |
| CFO18/20 | 12.8 | 18/20 | 235 | 40 | 111 | 53 | 55 | 92 | 228 | 315 | 25 | 7.8 |
| CFO22 | 15.5 | 22 | 265 | 46 | 123 | 66 | 71 | 110 | 258 | 268 | 32 | 9.9 |
| CFO26 | 21.6 | 26 | 305 | 54 | 133 | 65 | 81 | 120 | 277 | 420 | 33 | 13.8 |
| CFO32 | 32.8 | 32 | 327 | 60 | 155 | 84 | 96 | 131 | 333 | 459 | 35 | 24.5 |
Advices
The CFO grade 80 eye hook is made of alloy steel, quenched and tempered with a yellow, red or white paint finish (on request). The safety coefficient of the hook is 4 times the CMU. It is available in diameters from 6 to 32mm.
The cast eye hook is functional, robust and easy to use. The CFO hook is the link between the load to be moved or lifted and the lifting equipment.
From 8.2T, the hook is flat-free.
