Product description

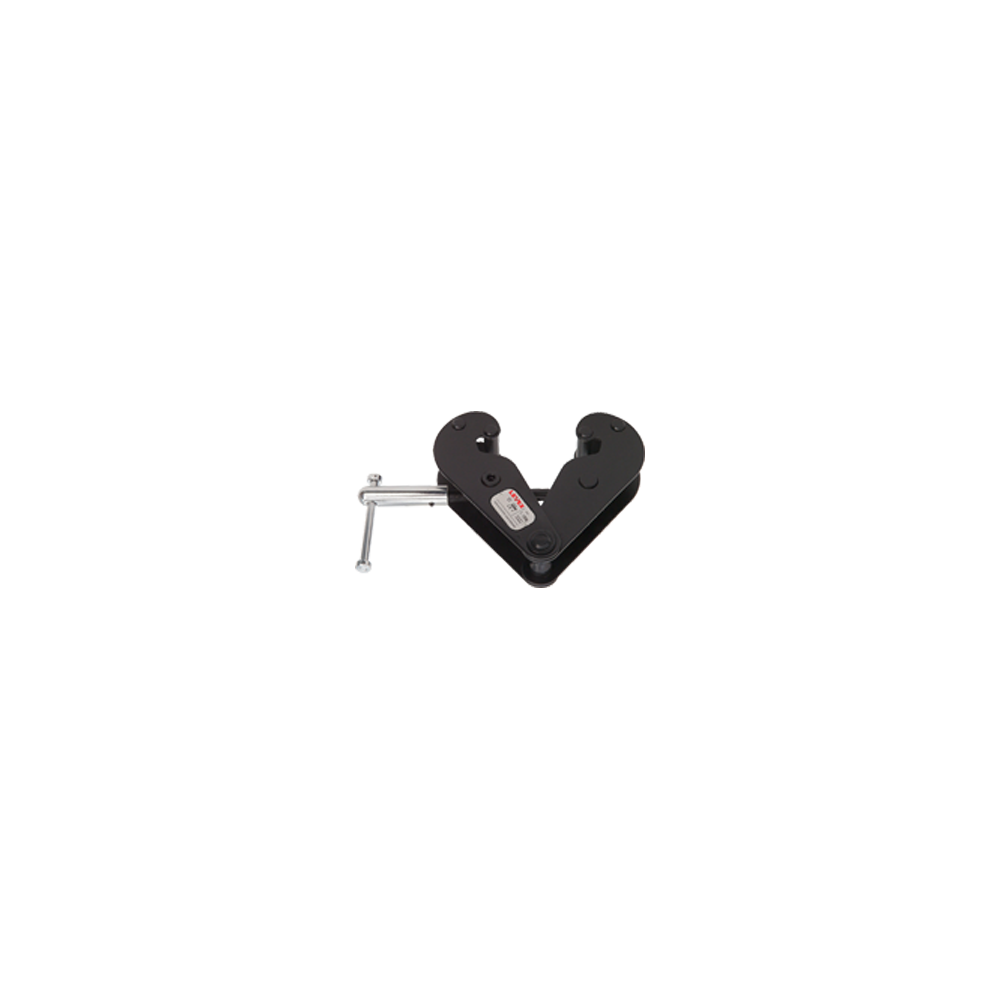

^The SBC profile claw can be used as a lifting clamp or as a semi-permanent attachment point on the running irons of all types of hoists. This lifting device has an integrated suspension pin. The assembly and disassembly of the lifting claw is simple and fast.
The profile claw is available in several versions with a GVW of 1000 to 10 000 kg and a bearing iron width adjustment from 75-230 mm to 90-320 mm.
Please note that this lifting clamp is not suitable for human loads.
For more information about our lifting product, please contact our customer service.
Product details

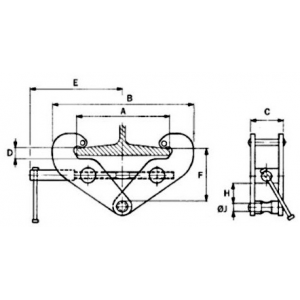

^| Référence | Capacité kg | Réglage largeur de fer de roulement mm | Poids kg | A mm | B mm | C mm | D mm | E mm | F mm | H mm | J mm |
| SBC-10 | 1000 | 75-230 | 4 | 75-230 | 185-330 | 64 | 24 | 198 | 90-144 | 30 | 20 |
| SBC-20 | 2000 | 75-230 | 5 | 75-230 | 185-330 | 74 | 24 | 198 | 90-144 | 30 | 22 |
| SBC-30 | 3000 | 80-320 | 10 | 80-320 | 240-475 | 100 | 41 | 263 | 137-208 | 65 | 24 |
| SBC-50 | 5000 | 90-320 | 12 | 90-320 | 240-475 | 110 | 41 | 263 | 134-205 | 65 | 30 |
Advices
The SBC profile claw can be used as a lifting clamp or as a semi-permanent attachment point on the running irons of all types of hoists. This lifting device has an integrated suspension pin. The assembly and disassembly of the lifting claw is simple and fast.
The profile claw is available in several versions with a GVW of 1000 to 10 000 kg and a bearing iron width adjustment from 75-230 mm to 90-320 mm.
Please note that this lifting clamp is not suitable for human loads.
For more information about our lifting product, please contact our customer service.
