Product description

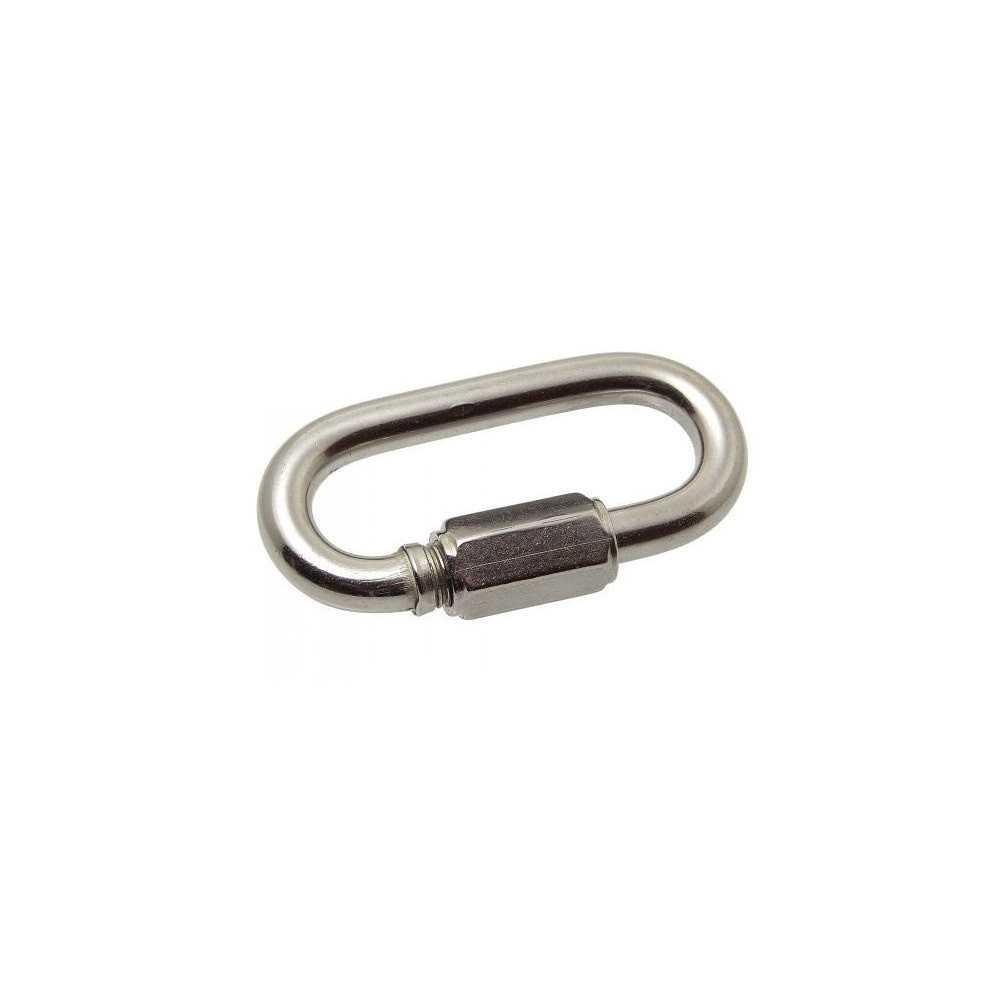

^The small opening stainless steel link is made of AISI 316L stainless steel. It is composed of a rod and a nut X2 CR Ni.
The product exists in several versions with a CMU ranging from 160 to 4 500 kg for a diameter of 160 mm only.
Its safety coefficient is obtained by multiplying the CMU by 5.
For more information on the link, please contact our customer service by phone.
The small opening stainless steel link is made of AISI 316L stainless steel. It is composed of a rod and a nut X2 CR Ni.
The product exists in several versions with a CMU ranging from 160 to 4 500 kg for a diameter of 160 mm only.
Its safety coefficient is obtained by multiplying the CMU by 5.
For more information on the link, please contact our customer service by phone.
Product details

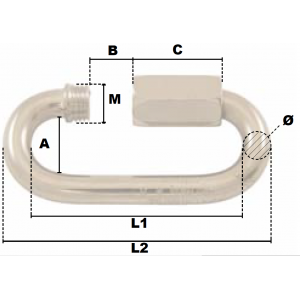

^| Référence | Diamètre | CMU | A | B | C | M | L1 | L2 | Poids |
| [mm] | [kg] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| MRI103 | 3 | 160 | 8.5 | 4 | 9 | 4 | 25 | 31 | 0.0053 |
| MRI103 | 3.5 | 220 | 10 | 5 | 11 | 5 | 29 | 36 | 0.0081 |
| MRI104 | 4 | 280 | 11.5 | 5.5 | 12.5 | 6 | 31.5 | 39.5 | 0.0120 |
| MRI105 | 5 | 450 | 13 | 6.5 | 16 | 7 | 39.5 | 49.5 | 0.0210 |
| MRI106 | 6 | 650 | 14.5 | 7.5 | 19 | 9 | 45 | 57 | 0.0354 |
| MRI107 | 7 | 900 | 16 | 8.5 | 21.5 | 10 | 52 | 66 | 0.0523 |
| MRI108 | 8 | 1100 | 17.5 | 11 | 24 | 11 | 58 | 74 | 0.0790 |
| MRI109 | 9 | 1400 | 19 | 11 | 26 | 12 | 62 | 80 | 0.105 |
| MRI110 | 10 | 1800 | 20.5 | 12 | 29 | 13 | 69 | 89 | 0.1405 |
| MRI112 | 12 | 2500 | 23.5 | 15 | 33 | 15 | 80.5 | 104.5 | 0.232 |
| MRI114 | 14 | 3500 | 26.5 | 17 | 38.5 | 17 | 93 | 121 | 0.374 |
| MRI116 | 16 | 4500 | 29.5 | 19 | 45 | 19 | 108 | 140 | 0.576 |
