Product description

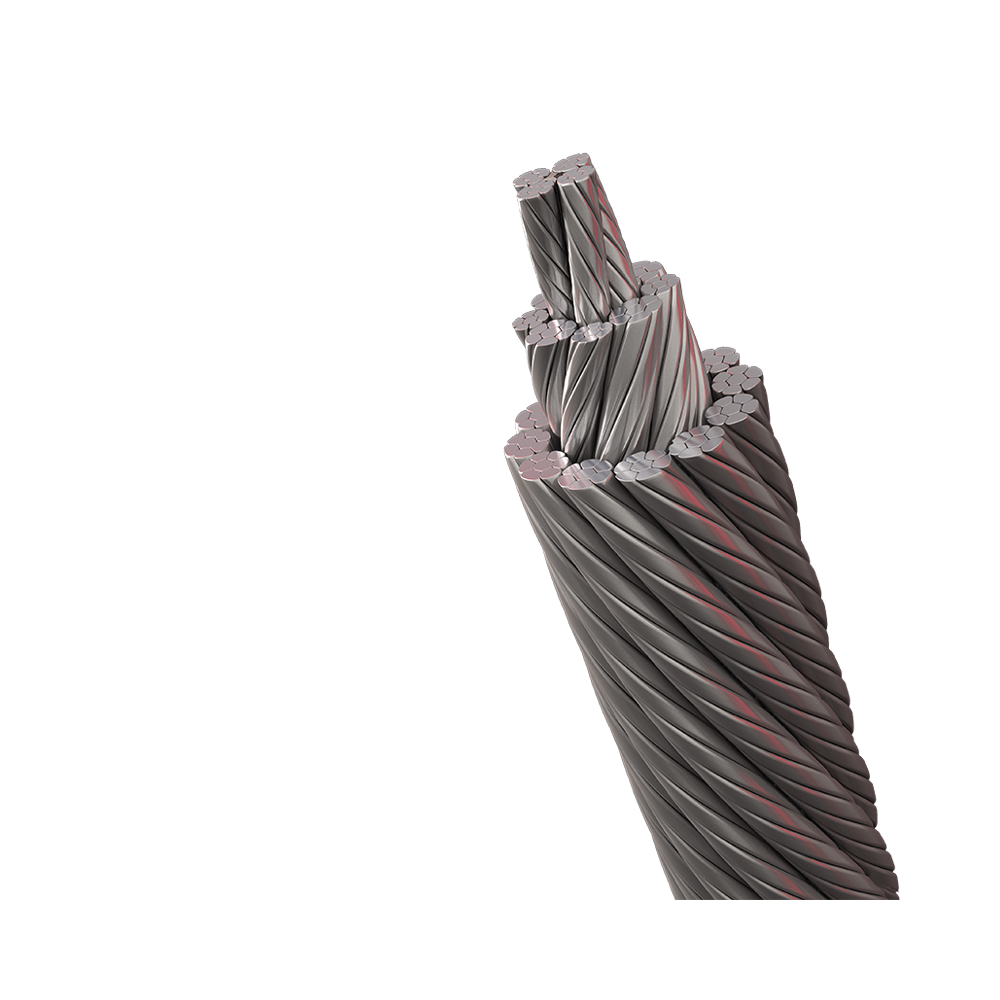

^NRHD 24 is a non-rotating hoisting rope for high lift applications such as tower cranes, mobile crawler cranes, offshore operations or any high lift device.
Its main characteristics are bending fatigue resistance, very good abrasion behavior in multilayer winding and a high degree of flexibility.

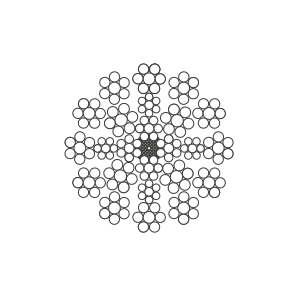

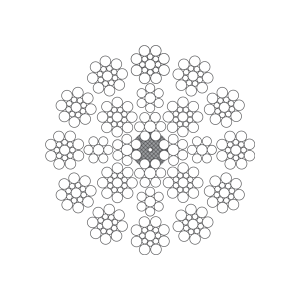

Composition:
24 strands of 7 wires from 7.2 mm to 22 mm diameter
24 strands of 17 wires from 24 mm diameter
Are you interested in this product? Please contact us for a quote.
Its main characteristics are bending fatigue resistance, very good abrasion behavior in multilayer winding and a high degree of flexibility.
Composition:
24 strands of 7 wires from 7.2 mm to 22 mm diameter
24 strands of 17 wires from 24 mm diameter
Are you interested in this product? Please contact us for a quote.
Product details
^| Ø câble | Section | Poids | Charge de rupture minimale |
| mm | mm | kg/m | 2160 N/mm2 |
| 8 | 30.5 | 0.27 | 56 |
| 9 | 37.8 | 0.34 | 68.5 |
| 10 | 47.8 | 0.43 | 86 |
| 11 | 56.8 | 0.51 | 104 |
| 12 | 68.0 | 0.61 | 124.5 |
| 13 | 81.6 | 0.72 | 145 |
| 14 | 96.5 | 0.86 | 175 |
| 15 | 106.2 | 0.94 | 190 |
| 16 | 125.5 | 1.12 | 220 |
| 17 | 140.8 | 1.25 | 248 |
| 18 | 158.2 | 1.41 | 275 |
| 19 | 173.3 | 1.53 | 310 |
| 20 | 188,5 | 1,67 | 335 |
| 21 | 213,4 | 1,89 | 368 |
| 22 | 235,3 | 2,09 | 415 |
| 24 | 281 | 2,5 | 495 |
| 25.4 | 309,8 | 2,75 | 560 |
| 28 | 384,9 | 3,42 | 675 |
| 29 | 408,2 | 3,63 | 712 |
| 30 | 446 | 3,95 | 765 |
| 32 | 507,4 | 4,49 | 870 |
| 34 | 572,8 | 5,07 | 983 |
| 36 | 643,6 | 5,73 | 1095 |
| 38 | 717,1 | 6,38 | 1215 |
| 40 | 795,6 | 7,08 | 1345 |
| 42 | 877,2 | 7,81 | 1485 |
| 44 | 962,7 | 8,57 | 1630 |
| 82 | 3343,7 | 29,75 | 5652 |
