Product description
^The G-417 Conical Shackle Anchor is used to secure a wire rope to a fixed point. The socket can be used as part of an anchoring system for guy wires for bridges, roofs or dredging cables.
The bushing is available up to 102mm, is made of galvanised steel and has a 100% efficiency based on the breaking load of the cable.
Product details

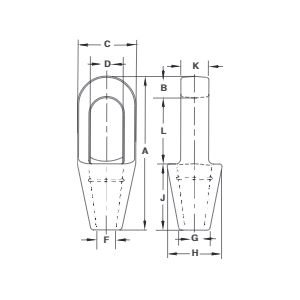

^| Référence | Diamètre câble | A | C | D | D | Poids |
| [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| 1039913 | 8-10 | 125 | 42.9 | 24.6 | 52.3 | 0.34 |
| 1039931 | 11-13 | 140 | 51 | 29.5 | 58.7 | 0.68 |
| 1039959 | 14-16 | 162 | 67 | 35.8 | 65 | 1.13 |
| 1039977 | 18 | 194 | 76.2 | 42.2 | 77.7 | 1.92 |
| 1039995 | 20-22 | 226 | 92 | 49.3 | 90.5 | 3.28 |
| 1040019 | 24-26 | 254 | 105 | 58.5 | 103 | 4.76 |
| 1040037 | 28-30 | 283 | 114 | 65 | 116 | 6.46 |
| 1040055 | 32-35 | 309 | 127 | 71 | 129 | 8.95 |
| 1040073 | 38 | 355 | 137 | 81 | 155 | 13.24 |
| 1040091 | 40-42 | 390 | 146 | 82.5 | 171 | 16.32 |
| 1040117 | 44-48 | 445 | 171 | 95.5 | 198 | 25.96 |
| 1040135 | 50-54 | 505 | 194 | 111 | 224 | 35.83 |
| 1040153 | 56-60 | 546 | 216 | 127 | 248 | 47.62 |
| 1041759 | 64-67 | 597 | 241 | 140 | 270 | 63.50 |
| 1041777 | 70-73 | 645 | 273 | 159 | 286 | 99.79 |
| 1041795 | 75-80 | 689 | 292 | 171 | 298 | 125 |
| 1041811 | 82-86 | 743 | 311 | 184 | 311 | 142 |
| 1041839 | 88-92 | 787 | 330 | 197 | 330 | 181 |
| 1041857 | 94-102 | 845 | 362 | 216 | 356 | 246 |
Advices
The G-417 Conical Shackle Anchor is used to secure a wire rope to a fixed point. The socket can be used as part of an anchoring system for guy wires for bridges, roofs or dredging cables.
The bushing is available up to 102mm, is made of galvanised steel and has a 100% efficiency based on the breaking load of the cable.
