Product description

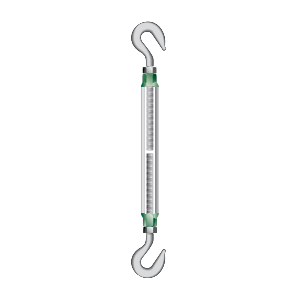

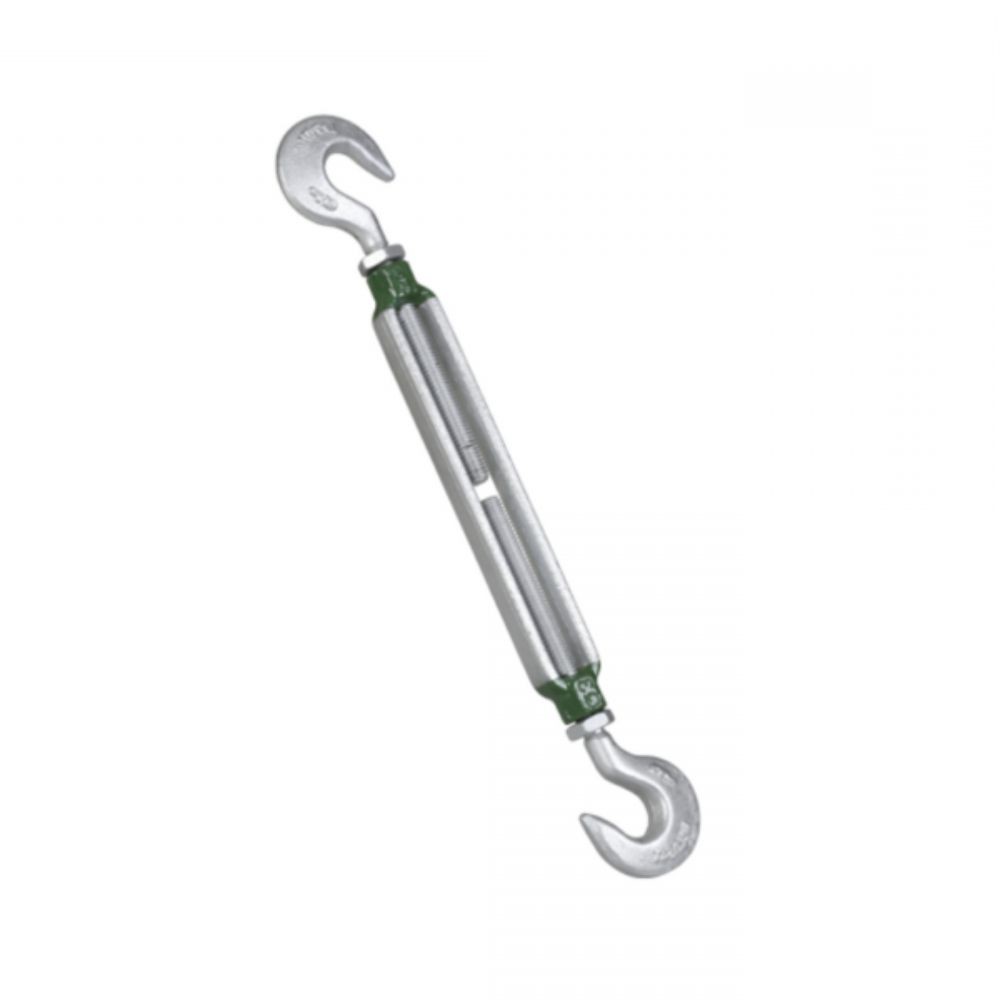

^The SSGPHH high strength hook and loop tensioner is manufactured from high strength forged steel SAE 1035 or 1045. The turnbuckle has a galvanised finish. The breaking load of the high strength hook and loop tensioner is obtained by multiplying the WLL by the safety factor 5.
The turnbuckle is a metal accessory used to join stainless steel cables to the structure on which they are hung. Tensioners ensure the rigidity and strength of an installation.
The high strength turnbuckle complies with ASTM F1145-92
Product details

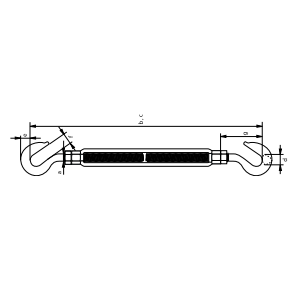

^| Référence | C.M.U. | Ø filetage | Longueur intérieure corps | Longueur position fermée | Longueur position ouverte | Epaisseur crochet | Epaisseur crochet | Ouverture crochet | Longueur position fermée | Poids |
| [t] | a [pouces] | [pouces] | b [mm] | c [mm] | d [mm] | e [mm] | f [mm] | g [mm] | [kg] | |
| SSGPHH1006 | 0.54 | 3/8 | 6 | 278 | 415 | 13 | 16 | 15 | 42 | 0.53 |
| SSGPHH1212 | 1 | ½ | 6 | 305 | 434 | 16 | 22 | 16 | 48 | 0.93 |
| SSGPHH1206 | 1 | ½ | 9 | 380 | 587 | 16 | 22 | 16 | 47 | 1.16 |
| SSGPHH1209 | 0.68 | ½ | 12 | 456 | 739 | 13 | 19 | 16 | 47 | 1.34 |
| SSGPHH1606 | 1.02 | 5/8 | 6 | 356 | 479 | 16 | 23 | 21 | 67 | 0.98 |
| SSGPHH1609 | 1.59 | 5/8 | 9 | 431 | 632 | 20 | 24 | 21 | 66 | 1.96 |
| SSGPHH1612 | 1.02 | 5/8 | 12 | 507 | 784 | 16 | 23 | 21 | 66 | 1.71 |
| SSGPHH1906 | 2.36 | ¾ | 6 | 393 | 511 | 22 | 27 | 24 | 79 | 1.53 |
| SSGPHH1909 | 1.36 | ¾ | 9 | 468 | 664 | 20 | 27 | 24 | 78 | 1.88 |
| SSGPHH1912 | 2.36 | ¾ | 12 | 544 | 816 | 22 | 27 | 24 | 78 | 3.27 |
| SSGPHH1918 | 2.36 | ¾ | 18 | 696 | 1122 | 22 | 27 | 24 | 78 | 4.5 |
| SSGPHH2506 | 2.27 | 1 | 6 | 479 | 586 | 26 | 35 | 31 | 109 | 3.87 |
| SSGPHH2512 | 4.54 | 1 | 12 | 625 | 886 | 26 | 35 | 31 | 106 | 6.64 |
| SSGPHH2518 | 2.27 | 1 | 18 | 778 | 1191 | 26 | 35 | 31 | 106 | 6 |
| SSGPHH2524 | 2.27 | 1 | 24 | 928 | 1495 | 26 | 35 | 31 | 105 | 7.52 |
Advices
The SSGPHH high strength hook and loop tensioner is manufactured from high strength forged steel SAE 1035 or 1045. The turnbuckle has a galvanised finish. The breaking load of the high strength hook and loop tensioner is obtained by multiplying the WLL by the safety factor 5.
The turnbuckle is a metal accessory used to join stainless steel cables to the structure on which they are hung. Tensioners ensure the rigidity and strength of an installation.
The high strength turnbuckle complies with ASTM F1145-92
