Product description
^The cable tensioner is a metal accessory used to connect stainless steel cables to the structure on which they are hung. The tensioners ensure the rigidity and solidity of an installation.

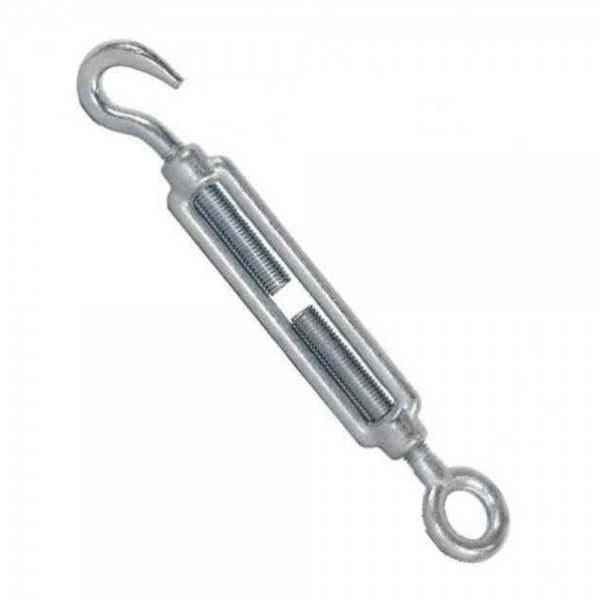

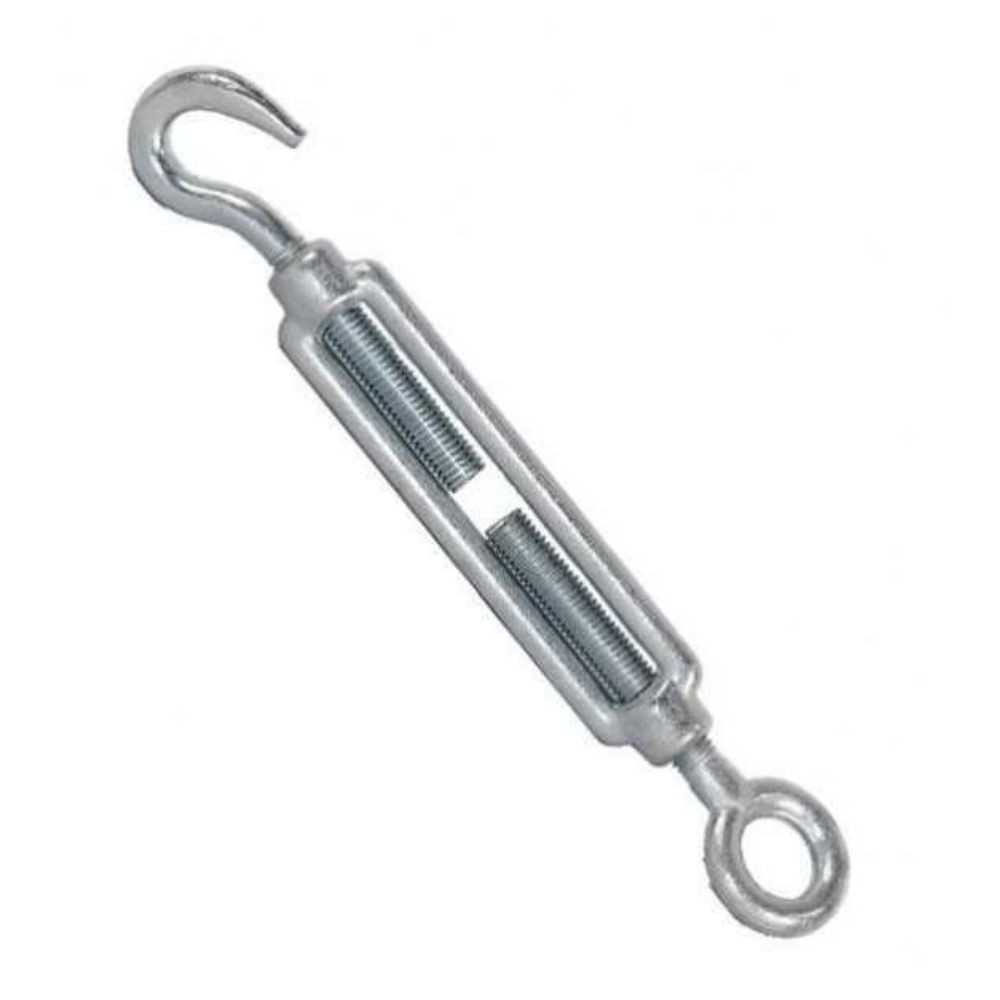

The eye/hook tensioner has a C15 steel cage and a Fe430B steel ring and hook. The turnbuckle is finished in white zinc. The breaking load of the eye/hook tensioner is obtained by multiplying the WLL by the safety factor 4.
Product details

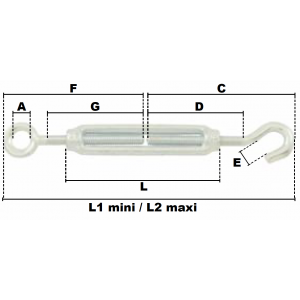

^| Référence | Filetage | CMU | A | C | D | E | F | G | L | L1 | L2 | Poids |
| [kg] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | ||
| TAC105 | M5 | 30 | 8 | 62 | 40 | 6 | 61 | 45 | 80 | 122 | 183 | 0.056 |
| TAC106 | M6 | 60 | 10 | 77 | 50 | 8 | 74.5 | 55 | 80 | 150 | 211 | 0.07 |
| TAC108 | M8 | 80 | 11 | 90 | 52 | 10 | 79 | 57 | 105 | 167 | 246 | 0.134 |
| TAC110 | M10 | 120 | 14 | 103.5 | 60 | 11 | 94 | 68 | 125 | 200 | 290 | 0.236 |
| TAC112 | M12 | 150 | 17 | 122 | 66 | 16 | 106 | 74 | 140 | 235 | 330 | 0.356 |
| TAC114 | M14 | 190 | 18 | 144 | 82 | 15 | 127 | 93 | 170 | 275 | 405 | 0.574 |
| TAC116 | M16 | 250 | 23 | 157 | 105 | 20 | 145 | 100 | 190 | 315 | 460 | 0.872 |
| TAC118 | M18 | 350 | 25 | 176 | 100 | 20 | 161 | 117 | 205 | 350 | 500 | 1.176 |
| TAC120 | M20 | 400 | 26 | 196 | 110 | 21 | 185 | 130 | 220 | 395 | 560 | 1.62 |
| TAC122 | M22 | 670 | 30 | 223 | 117 | 22 | 200 | 140 | 240 | 440 | 620 | 2.318 |
| TAC124 | M24 | 930 | 34 | 234 | 130 | 23 | 220 | 145 | 260 | 470 | 670 | 3.112 |
| TAC127 | M27 | 1100 | 38 | 252 | 150 | 27 | 230 | 160 | 300 | 520 | 710 | 4.924 |
| TAC130 | M30 | 1300 | 41 | 250 | 135 | 29 | 250 | 170 | 310 | 545 | 730 | 6.302 |
| TAC133 | M33 | 1700 | - | - | - | - | - | - | - | - | - | - |
| TAC136 | M36 | 2100 | - | - | - | - | - | - | - | - | - | - |
