Product description

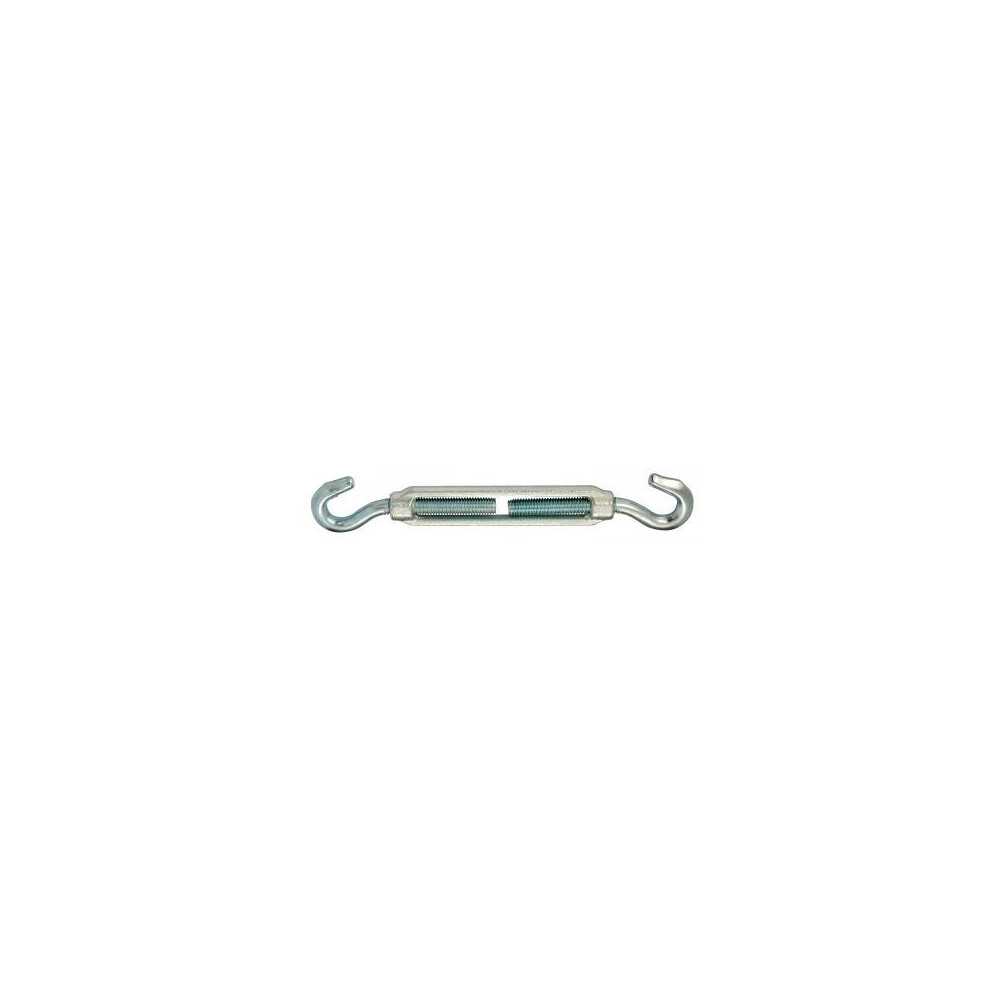

^The TCC hook and loop tensioner has a C15 steel cage and a Fe430B steel hook. The tensioner is finished in white zinc. The breaking load of the hook tensioner is obtained by multiplying the CMU by the safety factor 4.
The turnbuckle is a metal accessory used to connect stainless steel cables to the structure on which they are hung. The tensioners ensure the rigidity and solidity of an installation.
Product details

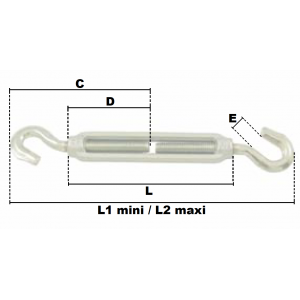

^| Référence | Filetage | CMU | C | D | E | L | L1 | L2 | Poids |
| [kg] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | ||
| TCC105 | M5 | 30 | 62 | 40 | 6 | 80 | 126 | 185 | 0.056 |
| TCC106 | M6 | 60 | 77 | 50 | 8 | 80 | 154 | 214 | 0.068 |
| TCC108 | M8 | 80 | 90 | 52 | 10 | 105 | 180 | 260 | 0.136 |
| TCC110 | M10 | 120 | 103.5 | 60 | 12.5 | 125 | 210 | 300 | 0.248 |
| TCC112 | M12 | 150 | 122 | 66 | 16 | 140 | 250 | 345 | 0.40 |
| TCC114 | M14 | 190 | 144 | 82 | 16 | 170 | 300 | 425 | 0.66 |
| TCC116 | M16 | 250 | 157 | 95 | 19 | 190 | 330 | 475 | 0.896 |
| TCC118 | M18 | 350 | 176 | 100 | 20 | 205 | 370 | 525 | 1.222 |
| TCC120 | M20 | 400 | 196 | 110 | 20 | 220 | 400 | 565 | 1.664 |
| TCC122 | M22 | 670 | 223 | 120 | 23 | 240 | 475 | 655 | 2.49 |
| TCC124 | M24 | 930 | 234 | 135 | 25 | 260 | 505 | 705 | 3.30 |
| TCC127 | M27 | 1100 | 252 | 150 | 28 | 300 | 550 | 755 | 5.172 |
| TCC130 | M30 | 1300 | 270 | 150 | 30 | 310 | 570 | 745 | 6.386 |
| TCC133 | M33 | 1700 | - | - | - | - | - | - | - |
| TCC136 | M36 | 2100 | - | - | - | - | - | - | - |
| TCC139 | M39 | 2490 | - | - | - | - | - | - | - |
Advices
The TCC hook and loop tensioner has a C15 steel cage and a Fe430B steel hook. The tensioner is finished in white zinc. The breaking load of the hook tensioner is obtained by multiplying the CMU by the safety factor 4.
The turnbuckle is a metal accessory used to connect stainless steel cables to the structure on which they are hung. The tensioners ensure the rigidity and solidity of an installation.
