Product description

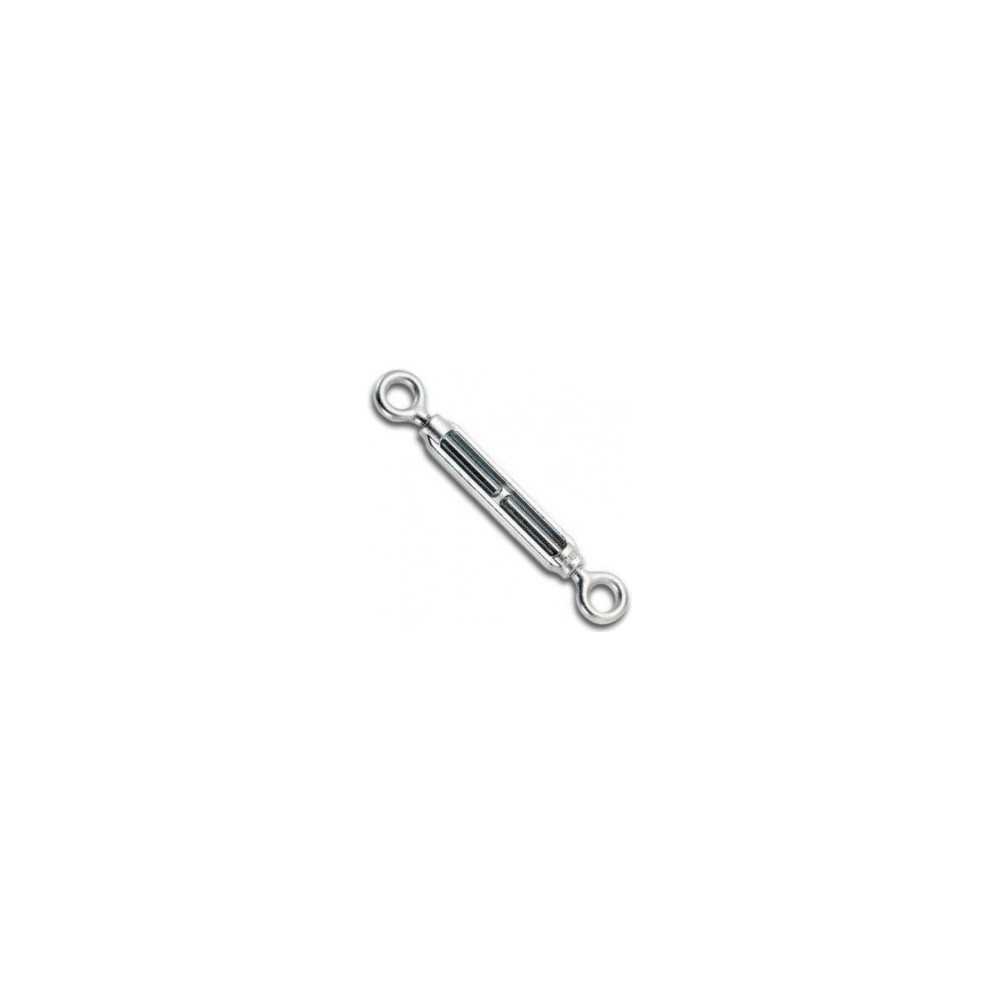

^The cable tensioner is a metal accessory used to connect stainless steel cables to the structure on which they are hung. The turnbuckles ensure the rigidity and solidity of an installation.
The TAA eyebolt/eyebolt is manufactured with a C15 steel cage and a Fe430B steel ring. The turnbuckle has a white zinc plated finish. The breaking load of the eyebolt is obtained by multiplying the WLL by the safety factor 4.
Product details

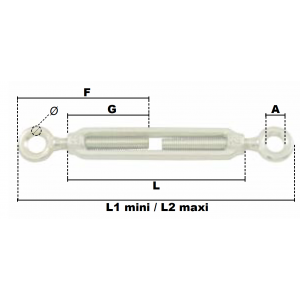

^| Référence | Filetage | CMU | Ø | A | F | G | L | L1 | L2 | Poids |
| [kg] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | ||
| TAA105 | M5 | 90 | 3.5 | 8 | 61 | 45 | 80 | 119 | 180 | 0.056 |
| TAA106 | M6 | 140 | 4.5 | 10 | 74.5 | 55 | 80 | 148 | 207 | 0.07 |
| TAA108 | M8 | 270 | 6 | 11 | 79 | 57 | 105 | 155 | 235 | 0.124 |
| TAA110 | M10 | 480 | 7 | 14 | 94 | 68 | 125 | 190 | 280 | 0.208 |
| TAA112 | M12 | 650 | 8 | 17 | 106 | 74 | 140 | 215 | 310 | 0.342 |
| TAA114 | M14 | 740 | 8.5 | 18 | 127 | 93 | 170 | 250 | 380 | 0.572 |
| TAA116 | M16 | 1300 | 13 | 25 | 145 | 100 | 190 | 290 | 430 | 0.824 |
| TAA118 | M18 | 1650 | 14 | 25 | 161 | 117 | 205 | 340 | 495 | 1.16 |
| TAA120 | M20 | 2000 | 16 | 26 | 185 | 130 | 220 | 370 | 535 | 1.614 |
| TAA122 | M22 | 2470 | 18 | 30 | 200 | 140 | 240 | 410 | 590 | 2.154 |
| TAA124 | M24 | 2940 | 18 | 34 | 220 | 145 | 260 | 450 | 645 | 2.832 |
| TAA127 | M27 | 3700 | 20 | 38 | 230 | 160 | 300 | 490 | 690 | 4.714 |
| TAA130 | M30 | 4680 | 25 | 41 | 250 | 170 | 310 | 530 | 720 | 6.394 |
| TAA133 | M33 | 5670 | - | - | - | - | - | - | - | - |
| TAA136 | M36 | 6800 | - | - | - | - | - | - | - | - |
| TAA139 | M39 | 7950 | - | - | - | - | - | - | - | - |
Advices
The cable tensioner is a metal accessory used to connect stainless steel cables to the structure on which they are hung. The turnbuckles ensure the rigidity and solidity of an installation.
The TAA eyebolt/eyebolt is manufactured with a C15 steel cage and a Fe430B steel ring. The turnbuckle has a white zinc plated finish. The breaking load of the eyebolt is obtained by multiplying the WLL by the safety factor 4.
