Product description

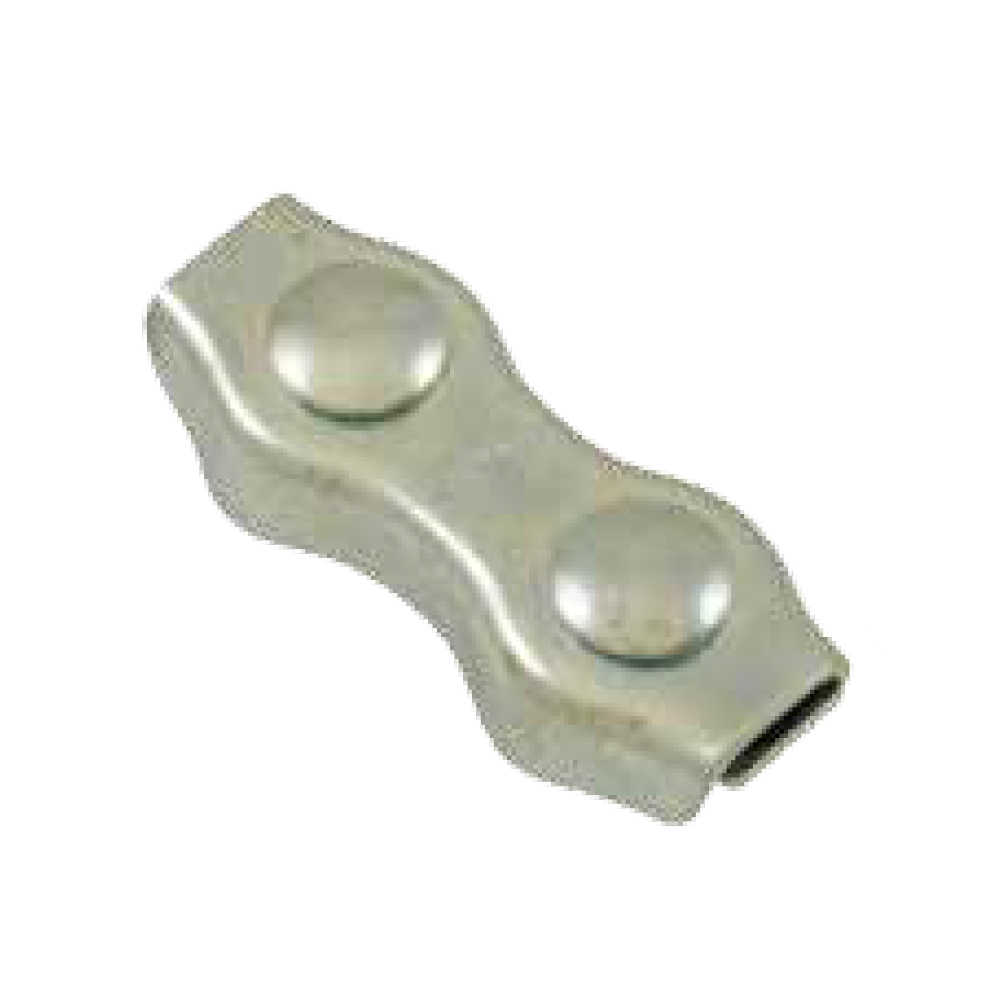

^The SCA2 flat cable tie is a cable tie with two steel bolts.
The cable tie is primarily used to securely loop the end of a cable, but also to connect two cables together.
The SCA2 cable tie is ideal for small cable diameters. It is tightened by two nuts, which must be evenly tightened and the return strand must be marked with the clamp.
The cable clamp is also available in stainless steel and simplex versions.
Product details

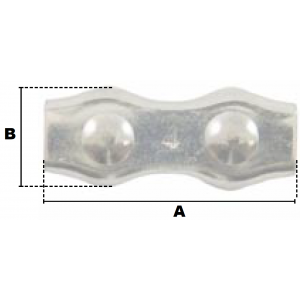

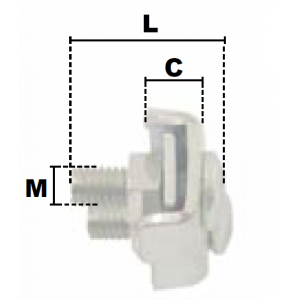

^| Référence | Diamètre câble | A | B | C | L | M | Diamètre de clé | Poids |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | ||
| SCA202 | 2 | 37 | 12.6 | 5 | 13.6 | M4 | 7 | 0.011 |
| SCA203 | 3 | 40 | 14 | 6.7 | 13.6 | M4 | 7 | 0.015 |
| SCA204 | 4 | 43 | 17 | 7 | 17 | M5 | 8 | 0.025 |
| SCA205 | 5 | 52 | 21 | 8.5 | 23 | M6 | 10 | 0.04 |
| SCA206 | 6 | 60 | 25 | 10 | 23 | M6 | 10 | 0.06 |
| SCA208 | 8 | 72 | 31 | 14 | 25.5 | M8 | 13 | 0.1 |
| SCA210 | 10 | 84 | 35 | 15 | 27.5 | M10 | 17 | 0.16 |
Advices
The SCA2 flat cable tie is a cable tie with two steel bolts.
The cable tie is primarily used to securely loop the end of a cable, but also to connect two cables together.
The SCA2 cable tie is ideal for small cable diameters. It is tightened by two nuts, which must be evenly tightened and the return strand must be marked with the clamp.
The cable clamp is also available in stainless steel and simplex versions.
