Product description

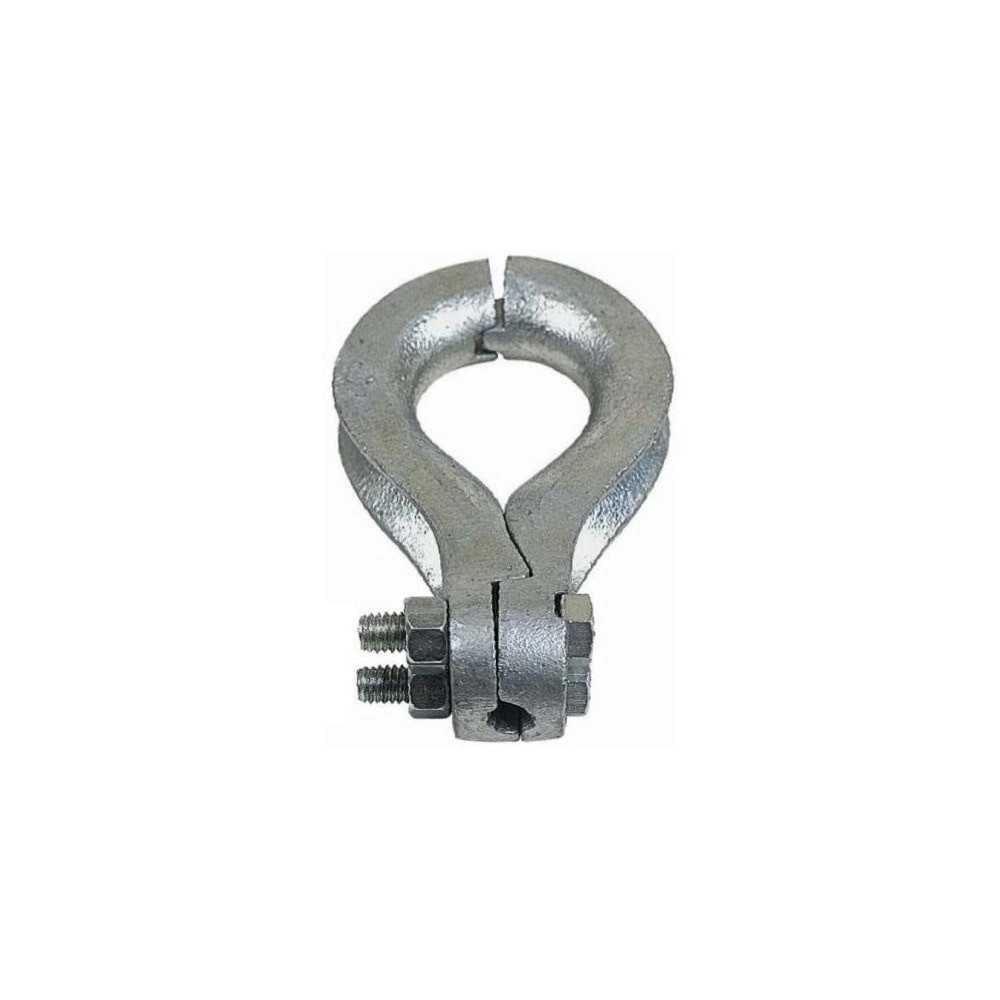

^The cable lug is made of malleable iron with a steel bolt and nut. The terminal has a hot-dip galvanised finish and the bolt and nut are galvanised.
The cable tie is available in diameters from 6 to 20mm.
Product details

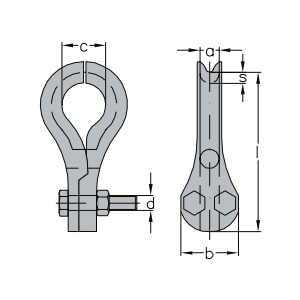

^| Référence | Diamètre du câble | a | b | c | d | l | s | Poids |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | ||
| 111210 006 | 6 | 6 | 26 | 21.5 | M 6 | 67 | 5.4 | 0.121 |
| 111210 010 | 10 | 12 | 37 | 30.5 | M 10 | 100 | 8.1 | 0.372 |
| 111210 012 | 12 | 15 | 48 | 42 | M 12 | 152 | 11.3 | 0.740 |
| 111210 016 | 16 | 19 | 61 | 51.5 | M 16 | 186 | 14.2 | 1.709 |
| 111210 020 | 20 | 25 | 76 | 67 | M 20 | 241 | 17.8 | 3.618 |
Advices
The cable lug is made of malleable iron with a steel bolt and nut. The terminal has a hot-dip galvanised finish and the bolt and nut are galvanised.
The cable tie is available in diameters from 6 to 20mm.
