Product description

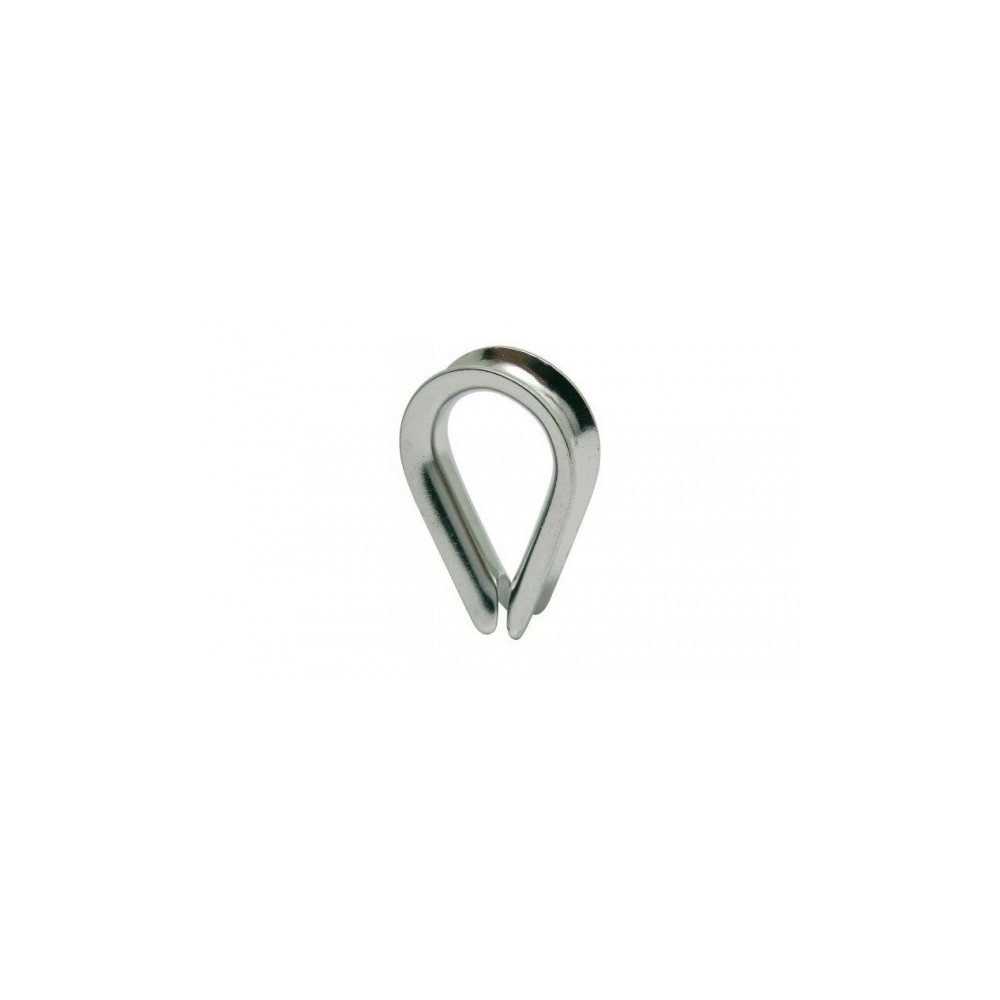

^The CGO large opening lug is used to reinforce and protect a loop at the end of a cable or for a lifting sling. The thimble provides a link between two metal assemblies, whether they are flexible or rigid.
The large aperture lug is manufactured in steel with a white galvanised finish (for lugs up to CGO122) or hot-dip galvanised (from CGO124).
The heart terminal is available in diameters from 4mm to 35mm.
Product details

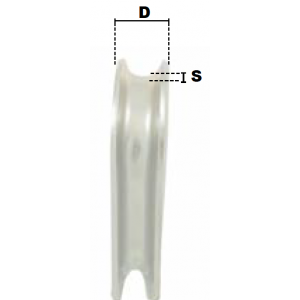

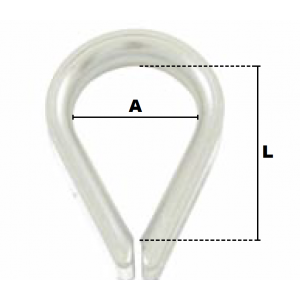

^| Référence | Diamètre câble | A | D | L | S | Poids |
| [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| CGO104 | 4 | 16 | 9 | 25 | 2 | 0.015 |
| CGO106 | 6 | 25 | 12 | 40 | 2 | 0.025 |
| CGO108 | 8 | 31 | 14 | 49 | 2.5 | 0.045 |
| CGO110 | 10 | 37 | 16 | 60 | 3 | 0.07 |
| CGO112 | 12 | 43 | 18 | 68 | 3 | 0.106 |
| CGO114 | 14 | 49 | 20 | 78 | 5 | 0.20 |
| CGO116 | 16 | 55 | 21 | 87 | 5 | 0.245 |
| CGO118 | 18 | 58 | 22 | 92 | 5 | 0.264 |
| CGO120 | 20 | 62 | 25 | 98 | 5 | 0.415 |
| CGO122 | 22 | 66 | 26 | 105 | 6 | 0.42 |
| CGO124 | 24 | 70 | 30 | 110 | 6.5 | 0.53 |
| CGO126 | 26 | 73 | 32 | 115 | 6.5 | 0.58 |
| CGO128 | 28 | 77 | 35 | 120 | 6.5 | 1.05 |
| CGO130 | 30 | 81 | 37 | 127 | 7 | 1.10 |
| CGO132 | 32 | 85 | 38 | 134 | 7 | 1.15 |
| CGO135 | 35 | 98 | 40 | 150 | 7 | 1.35 |
Advices
The CGO large opening lug is used to reinforce and protect a loop at the end of a cable or for a lifting sling. The thimble provides a link between two metal assemblies, whether they are flexible or rigid.
The large aperture lug is manufactured in steel with a white galvanised finish (for lugs up to CGO122) or hot-dip galvanised (from CGO124).
The heart terminal is available in diameters from 4mm to 35mm.
