Product description

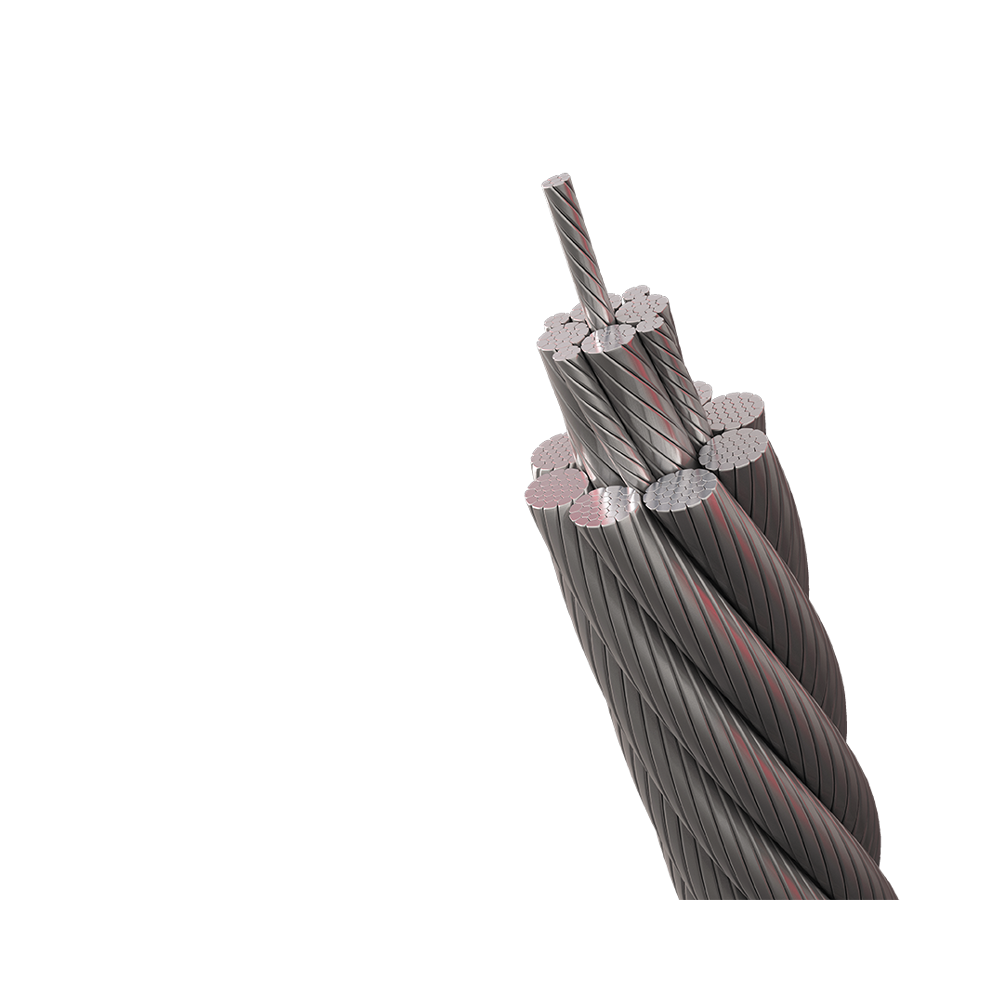

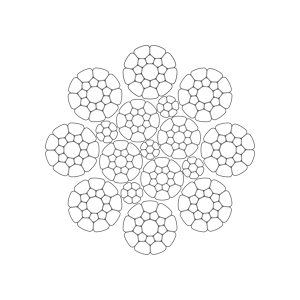

^Integral 8 Lifting Rope is a rope with 8 outer strands and 8 Warrington core strands, making it 16 strands stranded in parallel at the same pitch. The breaking load of the rope is extremely high with a very good filling coefficient. Integral 8 wire rope has 2160 N/mm2 galvanized wires and has a high crushing strength.
Integral 8 wire rope can be used for all heavy duty lifting applications where a high breaking load is required.
This rope should only be used with both ends stopped in rotation and under high tension.
Price is for 1M of rope. For more lengths, please contact our customer service.
Product details
^| Ø câble | Section | Poids | Charge de rupture minimale |
| mm | mm | kg/m | kN |
| 1960 MPa | |||
| 6.4 | 23.7 | 0.20 | 43 |
| 7 | 28.3 | 0.25 | 51 |
| 7.2 | 29.9 | 0.26 | 54 |
| 8 | 36.8 | 0.32 | 67 |
| 9 | 46.6 | 0.40 | 85 |
| 10 | 57.1 | 0.50 | 105 |
| 11 | 69.1 | 0.60 | 126.4 |
| 12 | 82.1 | 0.71 | 150 |
| 13 | 95.9 | 0.83 | 175 |
| 14 | 112.2 | 0.97 | 205 |
| 15 | 130 | 1.13 | 238.6 |
| 16 | 149.1 | 1.31 | 273 |
| 18 | 187.4 | 1.64 | 343 |
| 19 | 208.8 | 1.83 | 382 |
| 20 | 231.3 | 2.02 | 423 |
| 22 | 279.9 | 2.45 | 512 |
| 24 | 333.2 | 2.92 | 609 |
| 25 | 361.5 | 3.16 | 661 |
| 26 | 379.9 | 3.32 | 703 |
| 28 | 454.0 | 3.96 | 821 |
| 28.6 | 473.7 | 4.13 | 856 |
| 30 | 521.2 | 4.55 | 942 |
| 32 | 602.8 | 5.29 | 1086 |
| 34 | 680.5 | 5.97 | 1226 |
| 36 | 762.9 | 6.69 | 1375 |
| 38 | 842.2 | 7.38 | 1495 |
| 40 | 943.3 | 8.27 | 1658 |
| 42 | 1040.0 | 9.12 | 1828 |
| 44.5 | 1117.1 | 9.74 | 2003 |
| 46 | 1193.7 | 10.41 | 2140 |
| 48 | 1296.6 | 11.35 | 2309 |
| 50 | 1406.9 | 12.32 | 2505 |
| 50.8 | 1452.3 | 12.71 | 2586 |
| 52 | 1521.7 | 13.32 | 2710 |
